3 Series E46 316ti (N42) COMP
65 12 070
Removing and installing / replacing amplifier
Remove rear left side trim panel.
Remove insulating mat.

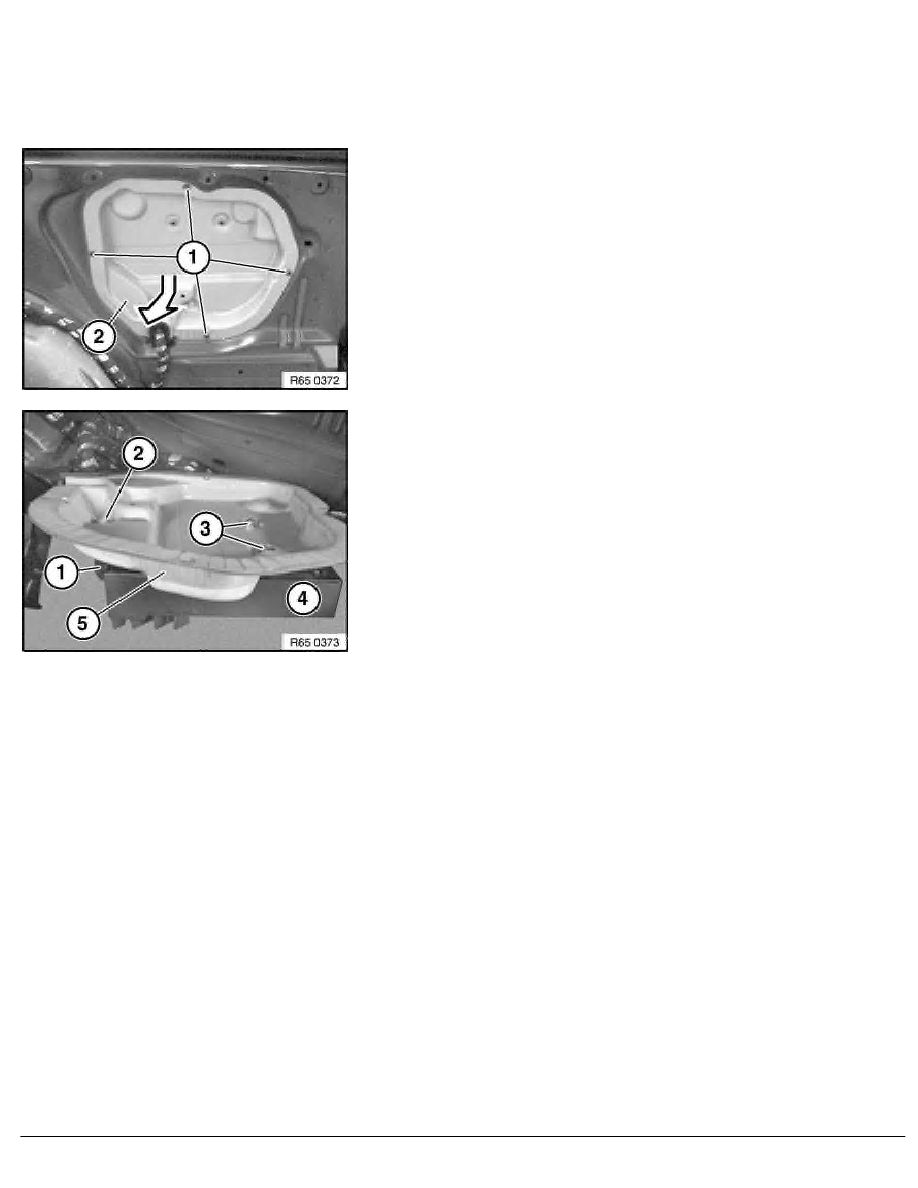

Release screws (1) and remove side wall cover (2) in direction
of arrow.
Disconnect plug connection (1).
Release screw (2).
Release nuts (3).
Remove amplifier (4) from side wall cover (5).
RA Removing and installing / replacing amplifier
BMW AG - TIS
25.01.2013 22:47
Issue status (12/2007) Valid only until next DVD is issued
