3 Series E46 318Ci (N46) COUPE
35 11 000
Removing and installing mounting block for
pedals
Caution!
If a brake pedal without a retaining bracket (which encloses
the piston rod) is fitted, if must be replaced by a brake pedal
with a retaining bracket.
Remove panel for pedal assembly.
Remove brake pedal.
If necessary, remove clutch switch.
Installation:
Make sure plug connections engage correctly.
Unhook return spring from clutch pedal.

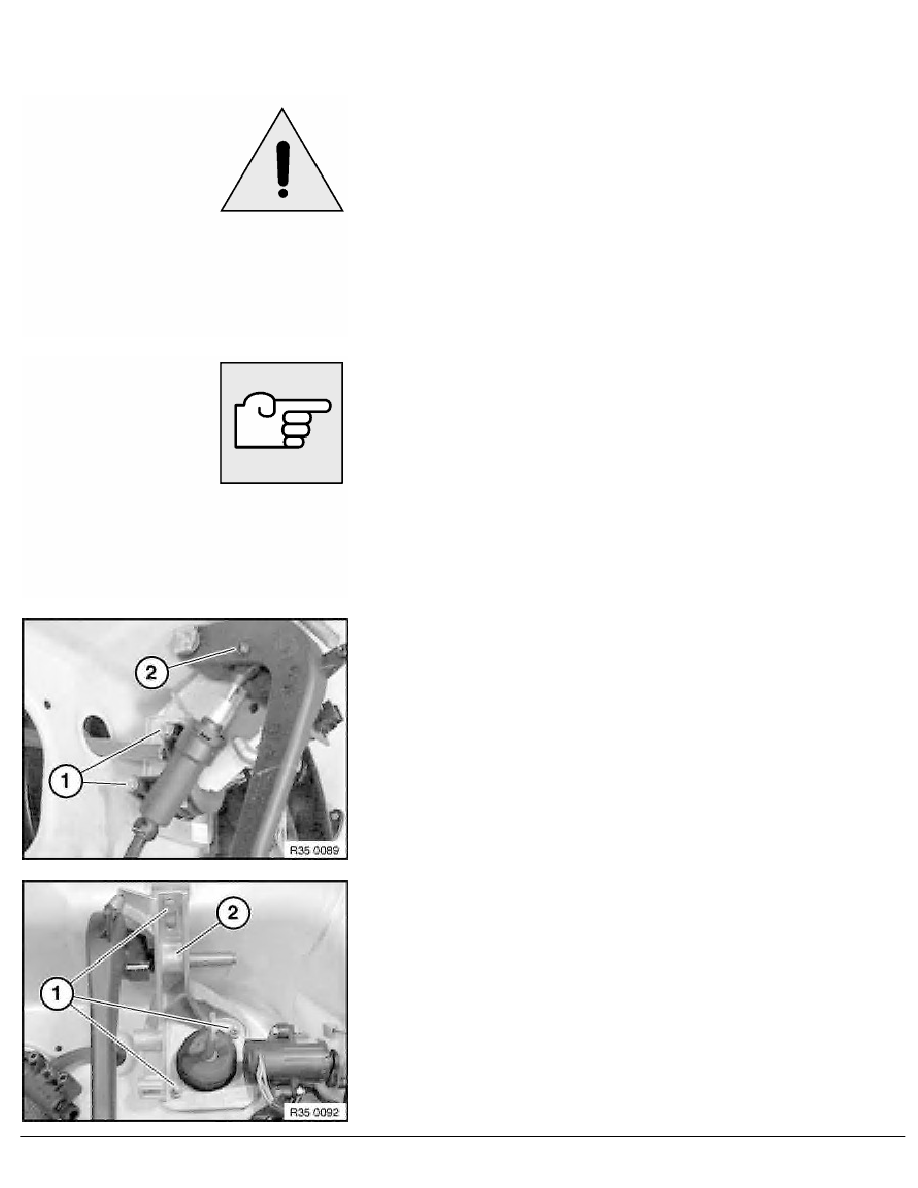

Press pin ends together and withdraw pin (2).
Release screws (1) on clutch master cylinder.
Remove retaining plate for brake light and clutch switches.
Release nuts (1) and remove bearing block (2).
RA Removing and installing mounting block for pedals
