3 Series E46 318ti (N42) COMP

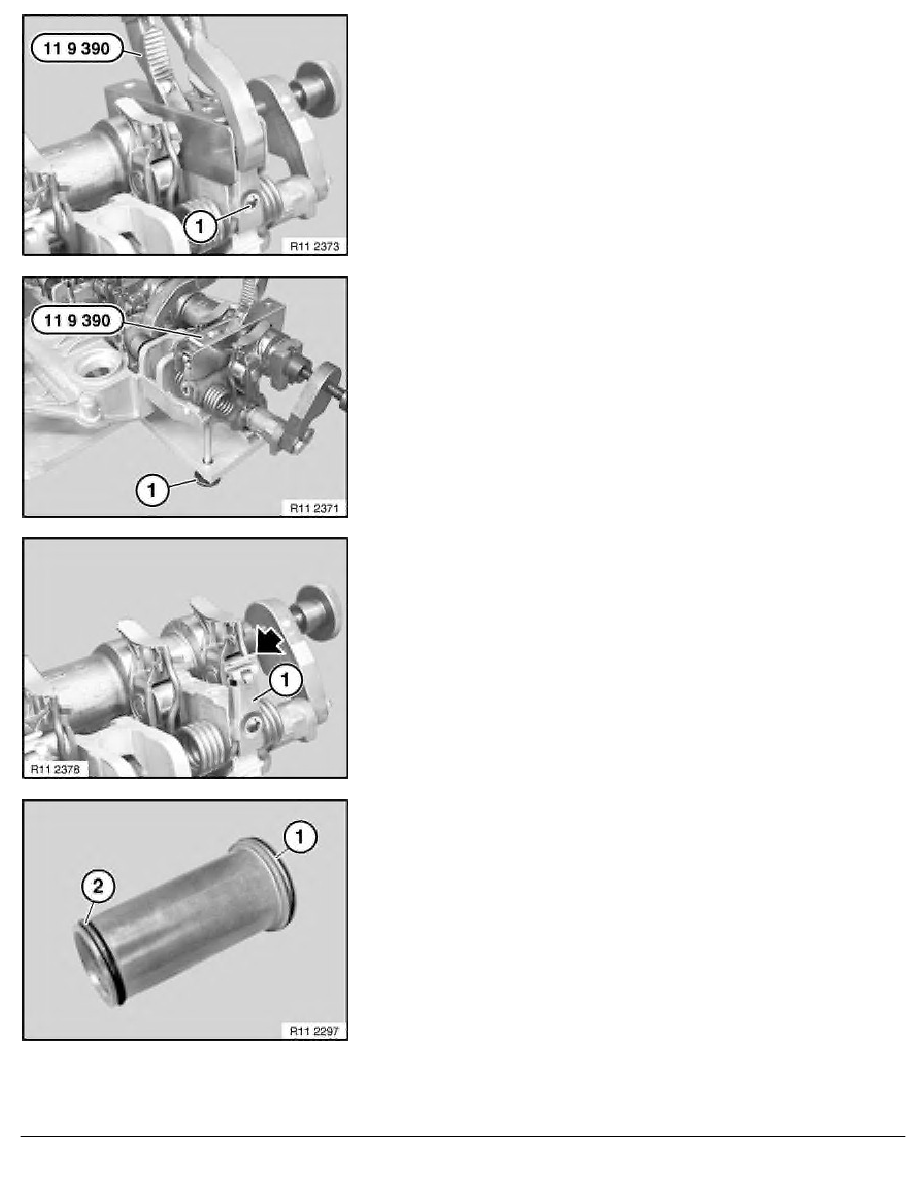

Insert screw (1) and tighten down.
Remove nut (1).
Remove special tool 11 9 390 .
Install torsion springs of cylinders 1 to 3 in accordance with
same procedure.
Note:
The retaining plate (1) will inevitably be subject to slight bending
when the torsion springs are tensioned and released but this does
not have any effect on the function.
Note:
O-rings (1 and 2) are different.
Replace O-rings (1 and 2) on spark plug domes and coat with
engine oil as antiseize agent.
RA Removing and installing/replacing inlet camshaft (N42/N46)
BMW AG - TIS
12.02.2013 01:34
Issue status (12/2007) Valid only until next DVD is issued
Copyright
Page - 13 -
