3 Series E46 318ti (N42) COMP
Warning!
Risk of injury and damage possible.
Removal of bearing bracket is described below.
Comply with the recommended procedure and use of the special
tools.
It will not be possible to remove the bearing bracket without
special tools.

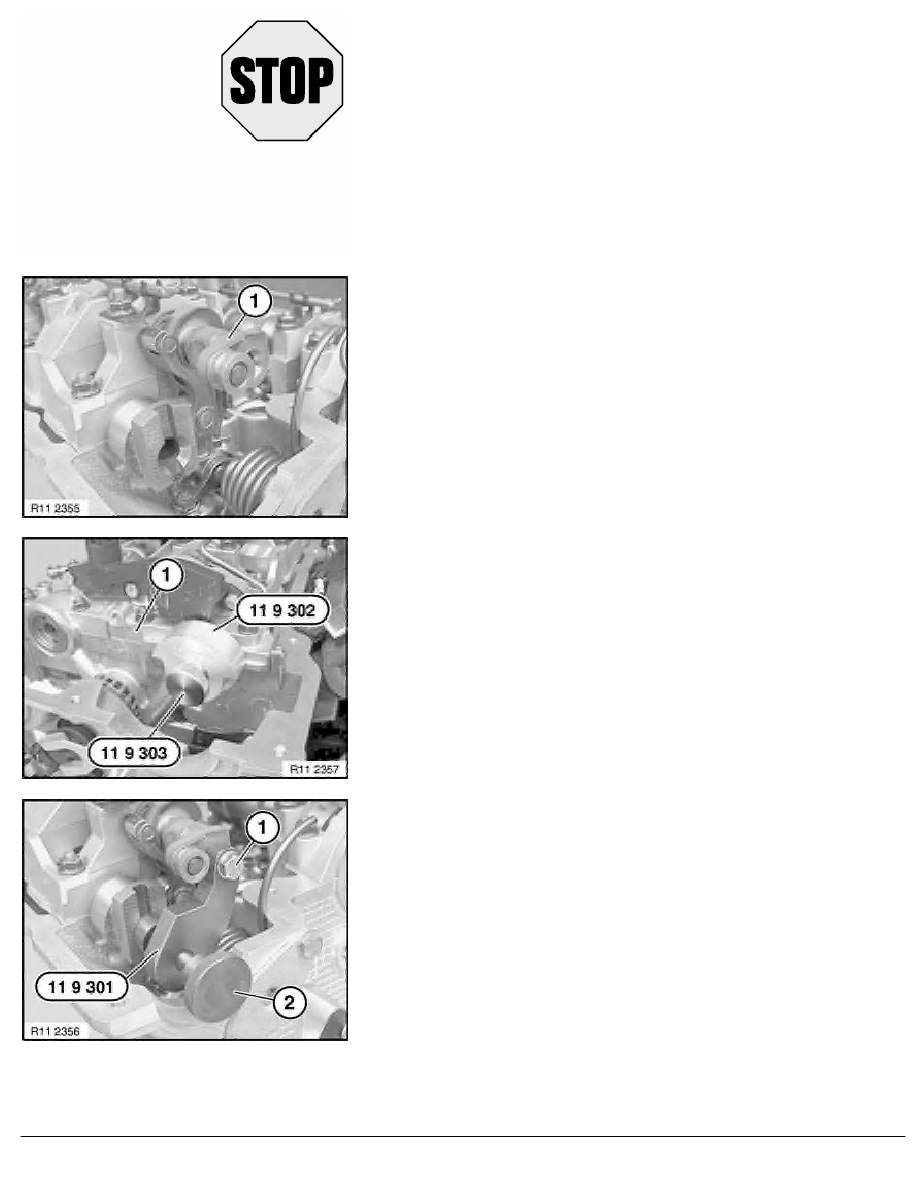

Rotate eccentric shaft (1) at hexagon as shown in illustration
back to minimum stroke position.
Fit special tool 11 9 302 as illustrated and screw down with
special tool 11 9 303 in inlet camshaft.
Note:
Special tool 11 9 302 secures inlet camshaft with bearing
bracket (1).
Unscrew knurled screw (2).
Secure special tool 11 9 301 with screw (1) on eccentric shaft.
Align special tool 11 9 301 to inlet camshaft.
Install knurled screw (2) without play.
Tighten screw (1).
Gently pretension knurled screw (2) by hand.
