3 Series E46 318ti (N42) COMP
Important!

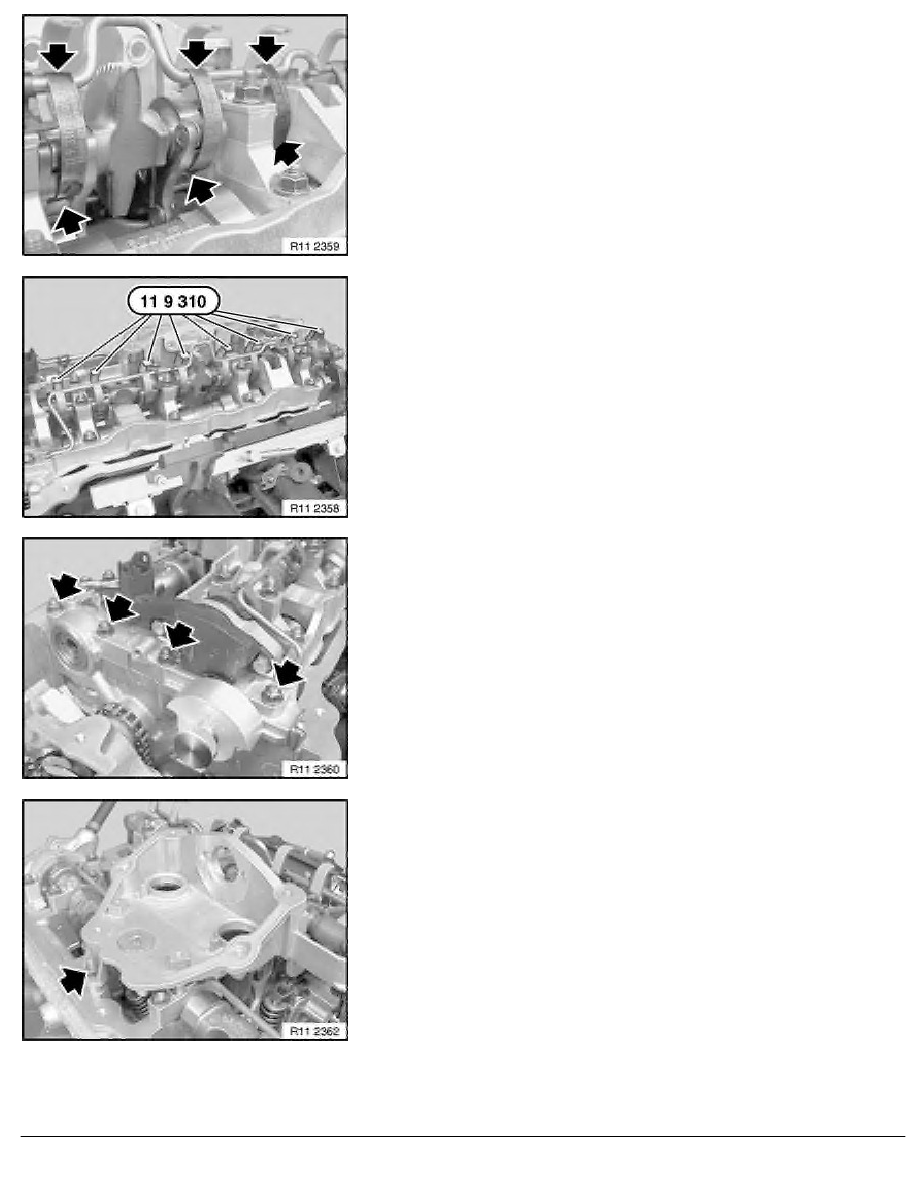

Before removing the bearing bracket, it is essential to secure
the intermediate levers against slipping out.
Attach special tool 11 9 310 at bottom in opening to
intermediate lever and at bottom to oil spray line.
Secure all intermediate levers with special tool 11 9 310
against slipping out.
Release 4 nuts on bearing bracket at front.
Release nut on bearing bracket on exhaust side.
RA Removing and installing/replacing exhaust camshaft (N42/N46)
