3 Series E46 318ti (N42) COMP
Note:

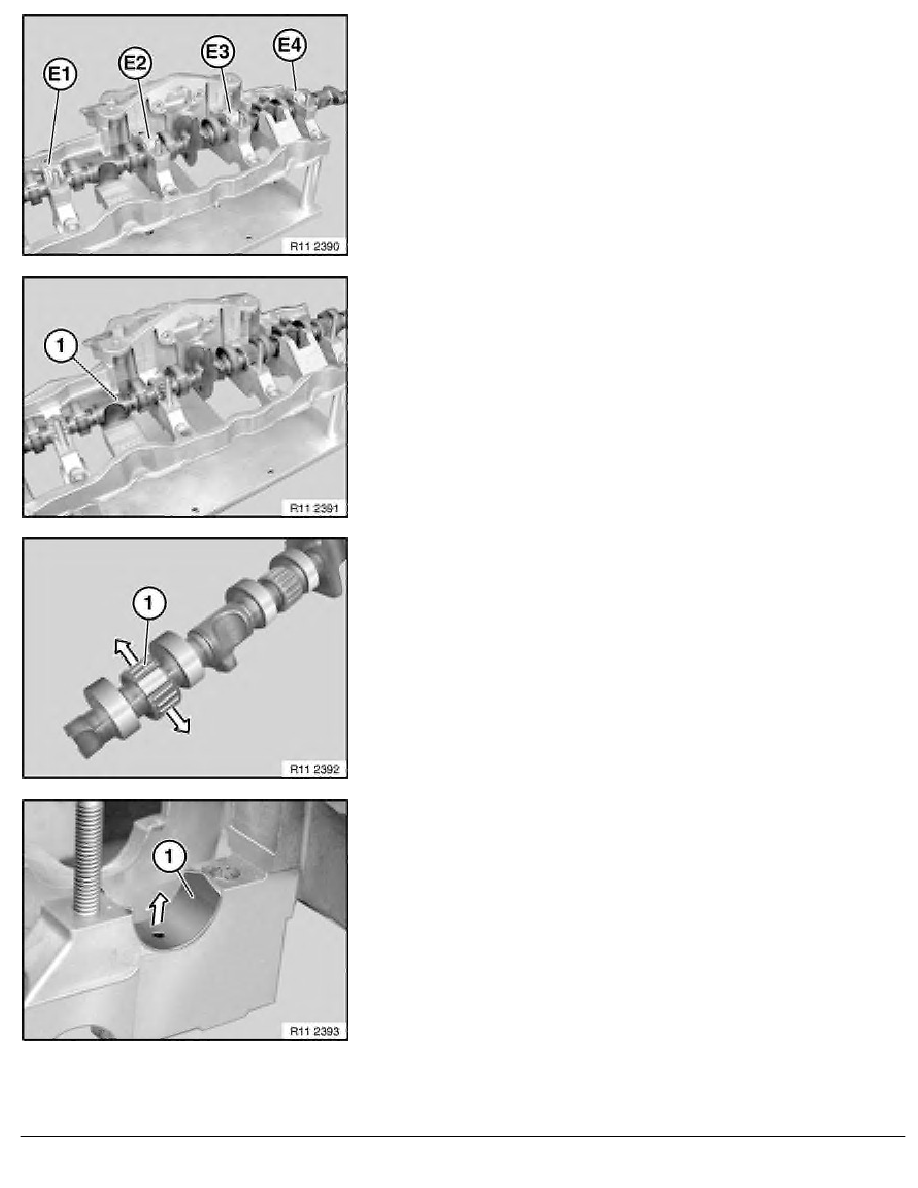

Bearing caps of eccentric shaft are marked E1 to E4 from inlet
side.
Remove bearing caps of eccentric shaft.
Remove eccentric shaft (1).
Important!
Needle bearings (1) break off very easily when removed and
installed.
Carefully press needle bearings (1) apart at split position only to
such an extent that they can be removed from eccentric shaft.
Note:
Bearing shells (1) are secured in oil bore.
Remove bearing shells (1) from bearing bracket.
RA Removing and installing / replacing eccentric shaft (N42 / N46)
