3 Series E46 318ti (N42) COMP
Important!
Left-hand threads.

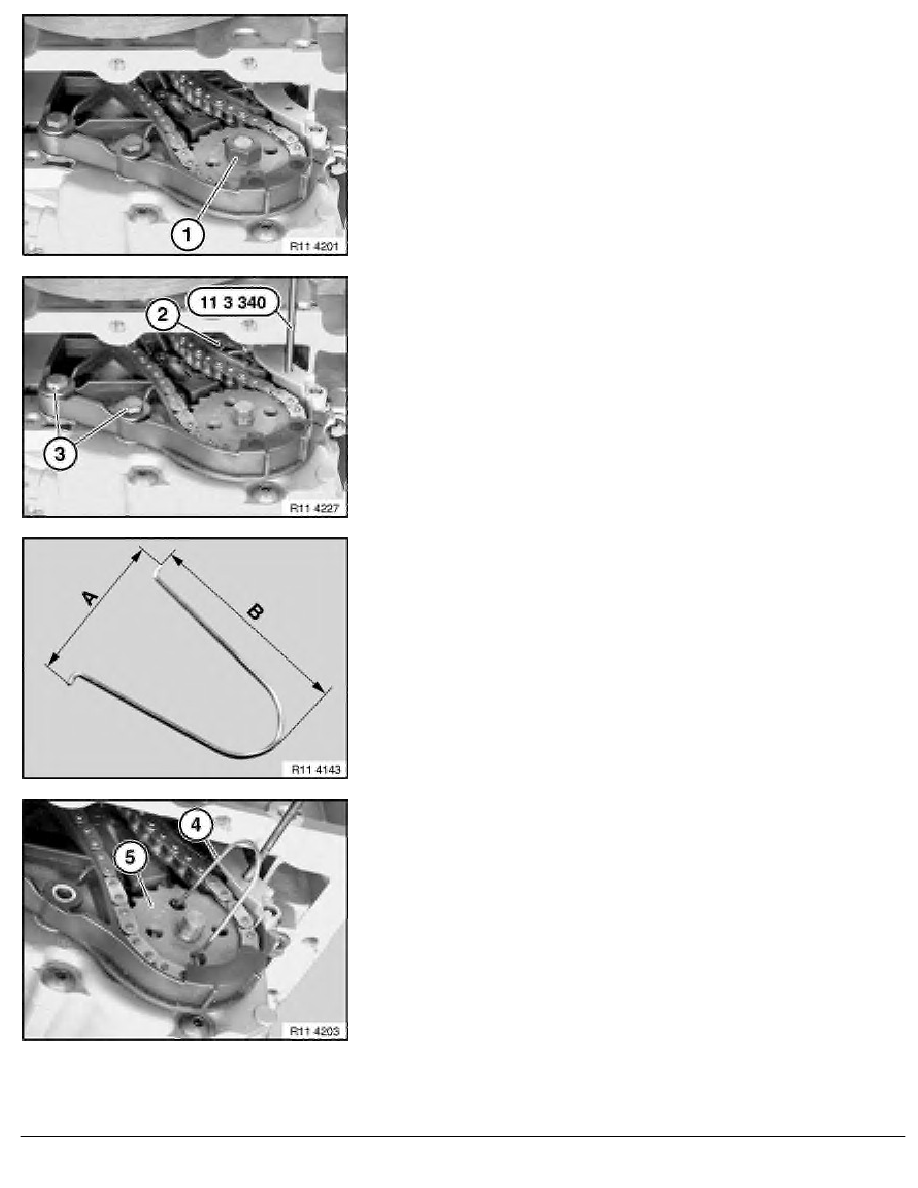

Release nut (1).
Press clamping rail (2) towards rear and secure with special
tool 11 3 340 .
Release screws (3).
Make a clamp out of suitable material (welding wire).
A = approx. 40 mm
A = approx. 60 mm
Using clamp (4), pull sprocket wheel (5) off oil pump shaft until it
is no longer secured on toothing.
RA Removing and installing/replacing oil pump (N40/N42/N45/N46)
