3 Series E46 318ti (N42) COMP

Page 2
background image

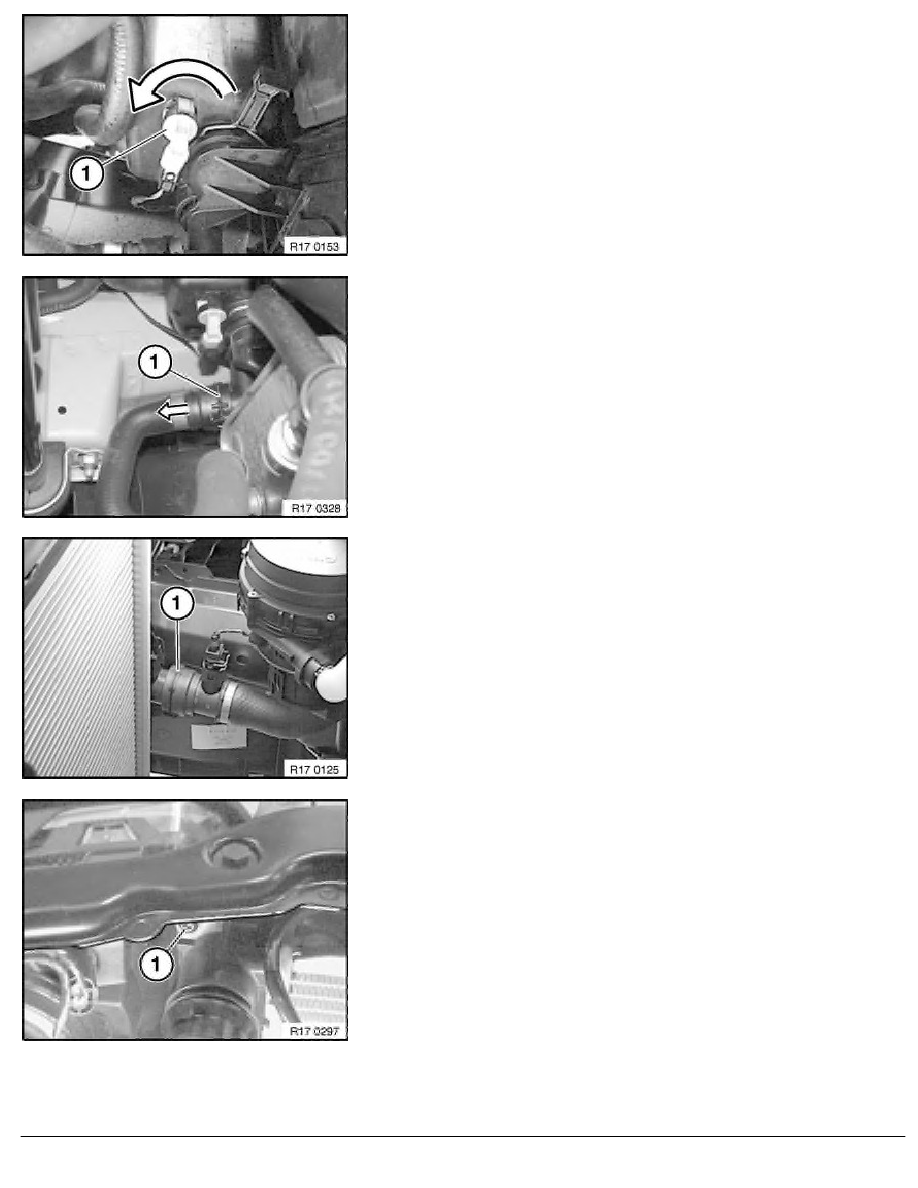

Unlock and disconnect plug connection at level sensor (1).

Pull locking clip (1) upwards.

Detach coolant hose from radiator.

Pull locking clip (1) upwards.

Detach coolant hose from radiator.

Release screw (1).

RA  Removing and installing radiator (N42 / N40 / N45 / N46)

BMW AG - TIS

12.02.2013  03:11

Issue status (12/2007) Valid only until next DVD is issued

Copyright

Page  - 2 -
