3 Series E46 318ti (N42) COMP
25 16 061

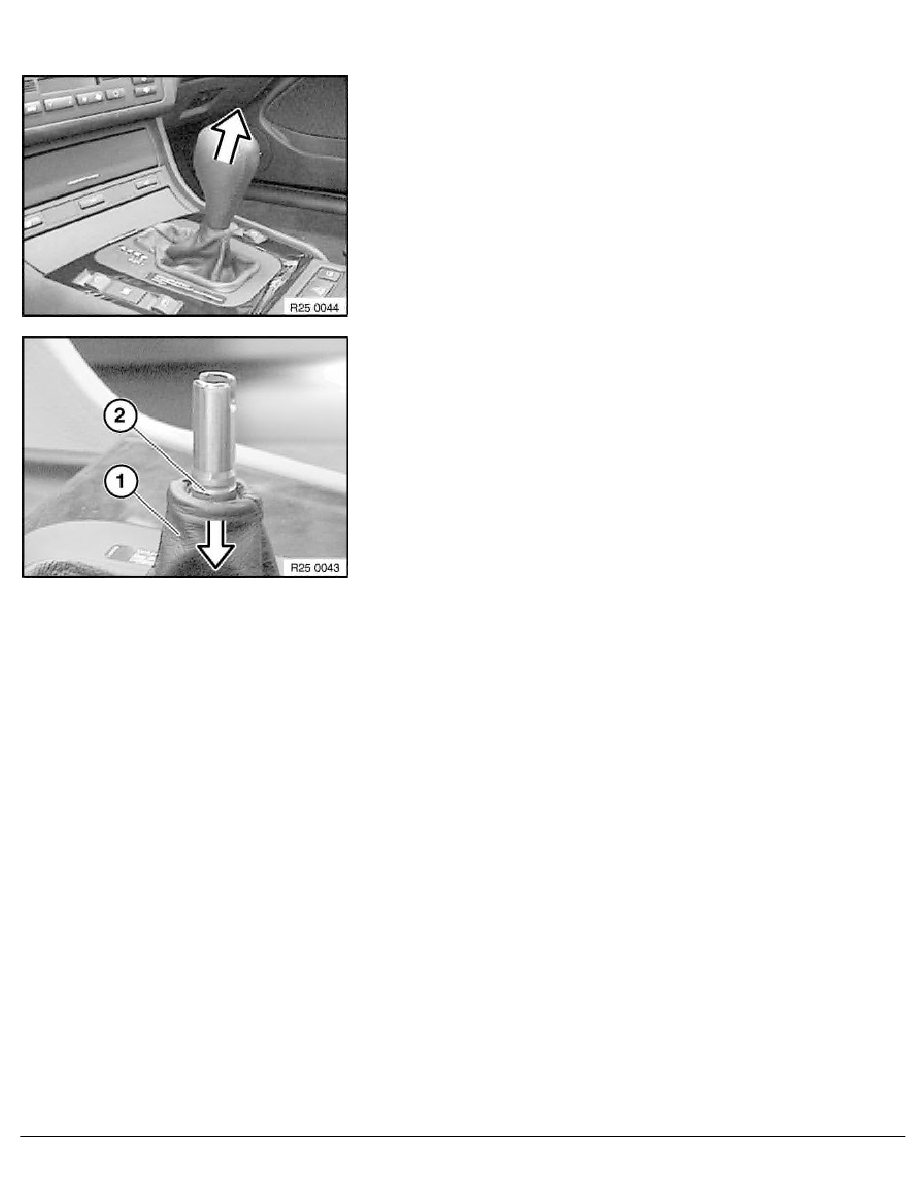

Replacing handle for selector lever
Note:
Do not twist handle during removal as this would cause the
turning lock in the knob to shear off.
Tug firmly to remove knob.
Installation:
Fit knob on selector lever, align and press on until it snaps
noticeably into place.
Installation:
Push rubber gaiter (1) down until groove (2) is fully exposed.
RA Replacing handle for selector lever
