3 Series E46 318ti (N42) COMP
34 41 220
Removing and installing/replacing all
handbrake shoes
Note:
Remove rear brake disk,
refer to 34 21 320.
Installation:
After completing work, adjust parking brake,
refer to 34 10 014.

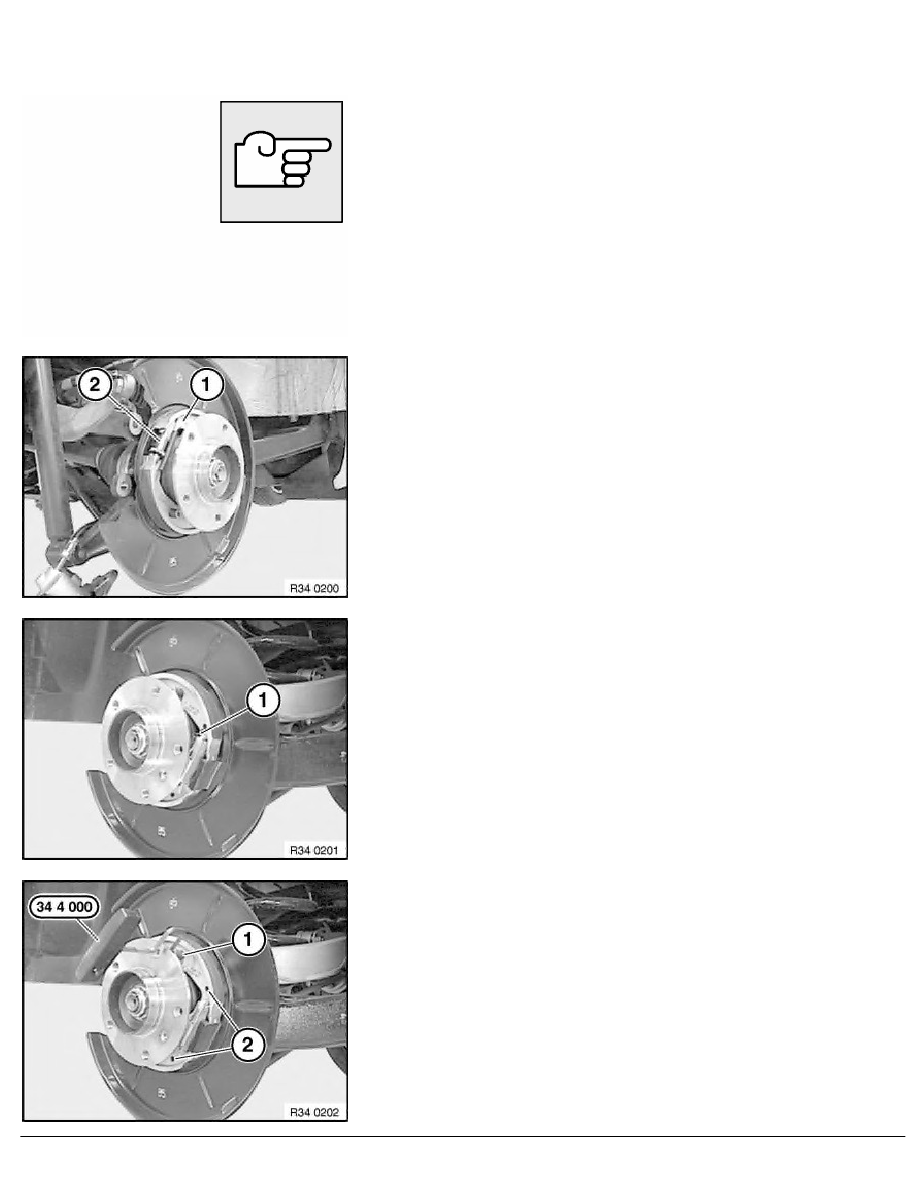

Disconnect return spring (1) with brake spring pliers.
Installation:
Check return spring (1), replace if necessary.
Figure illustrates right side: left side is mirror image of this.
Pay attention to installation position of adjustment screw (2).
Apply a thin coat of grease to bush and screw threads,
refer to BMW Operating Fluids.
Disconnect return spring (1) with brake spring pliers.
Installation:
Check return spring (1), replace if necessary.
Turn clamping pins (1) with special tool 34 4 000 through 90
°
and
disconnect.
Remove brake shoes (2).
