3 Series E46 318ti (N42) COMP

Page 1
background image

41

 00 ...

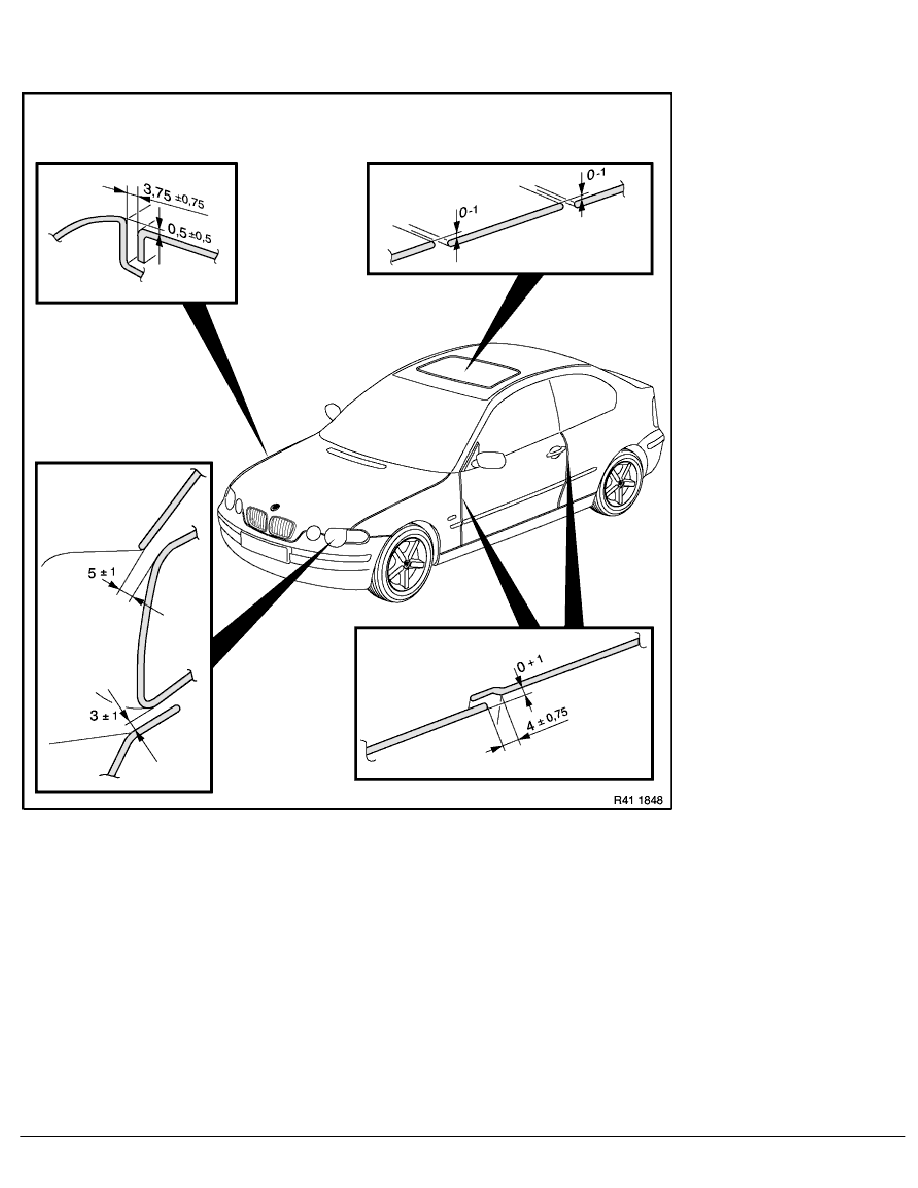

Gap dimensions, body

Dimensions in mm

RA  Gap dimensions, body

BMW AG - TIS

12.02.2013  07:51

Issue status (12/2007) Valid only until next DVD is issued

Copyright

Page  - 1 -
