3 Series E46 318ti (N42) COMP
51 11 180
Removing and installing/replacing trim grill in
front bumper trim (compact)
Necessary preliminary tasks:
·
Remove complete front bumper.
·
If necessary, remove both fog lamp inserts (complete).

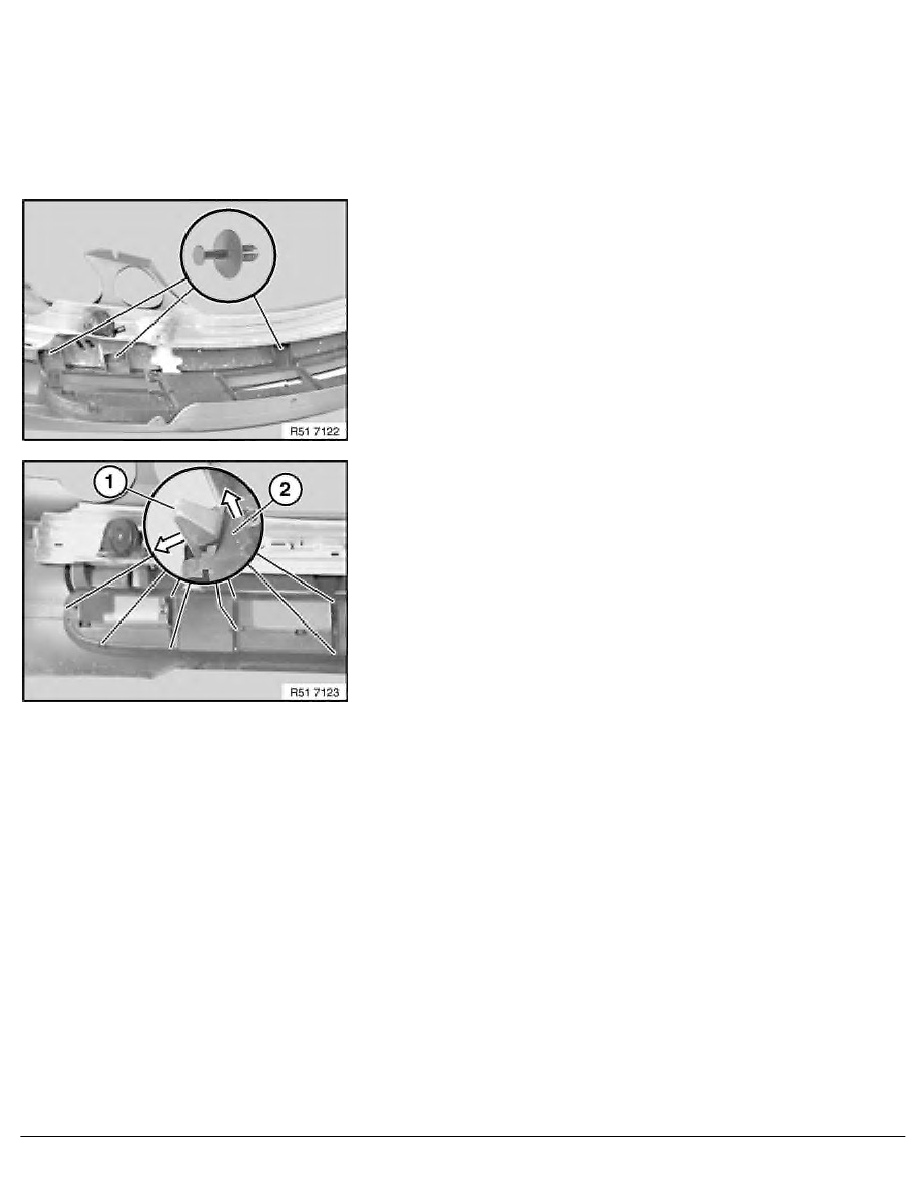

Release expansion rivets on left/right.
Gently press detent lugs (1) outwards on both sides in
succession and raise trim grill (2) slightly.
Remove trim grill (2).
