3 Series E46 318ti (N42) COMP
Note:

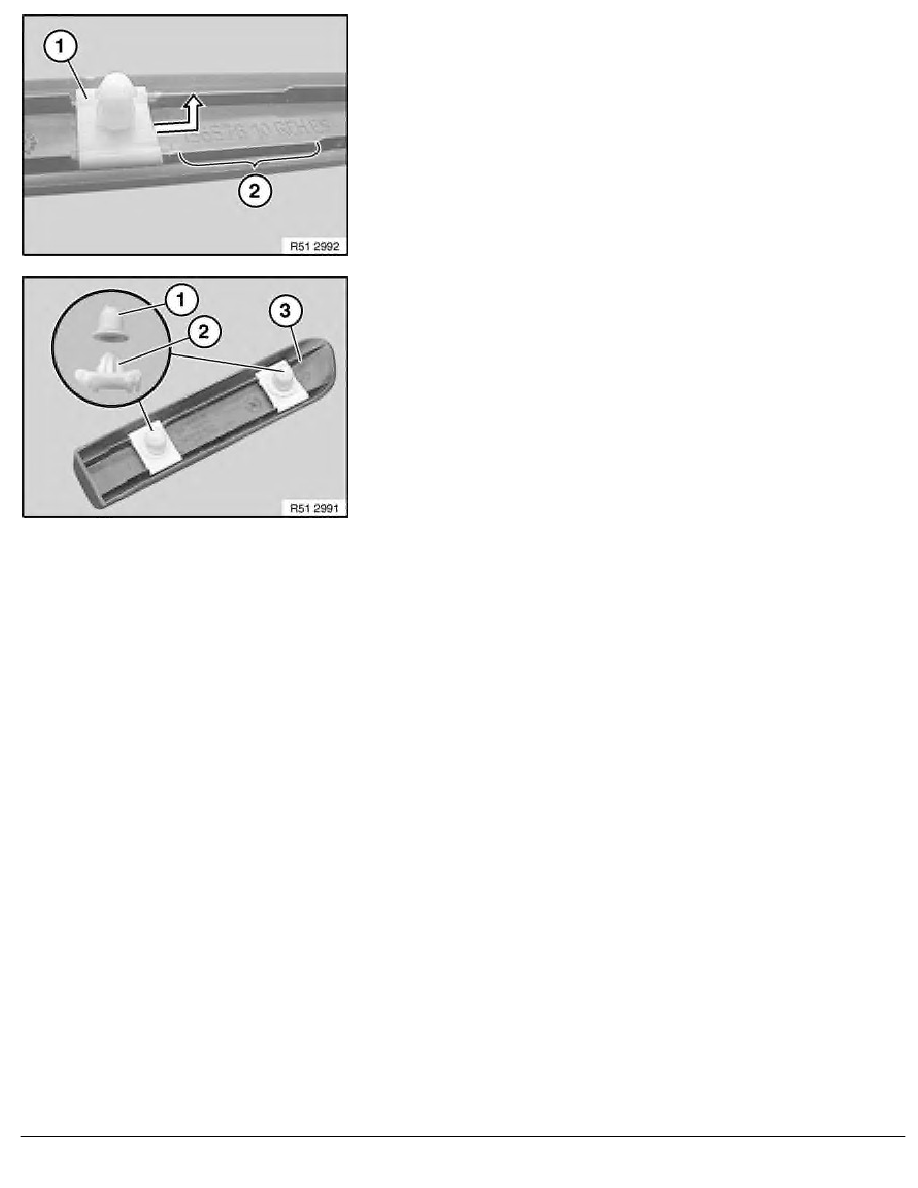

If necessary, slide faulty clips (1) into removal opening (2) and
remove.
Installation:
If necessary, replace faulty rubber grommets (1) and clips (2).
Coat rubber grommets (1) with water prior to fitting.
Clip clips with rubber grommets into protective strip (3) and align.
Clip protective strip (3) into side panel.
RA Removing and installing/replacing protective strip on side panel at front left o
