3 Series E46 318ti (N42) COMP
51 43 070
Removing and installing/replacing side trim
panel, footwell, on A-pillar, left
Remove panel for pedals,
refer to 51 45 185.
Remove front entrance cover strip (inside),
refer to 51 47 000.

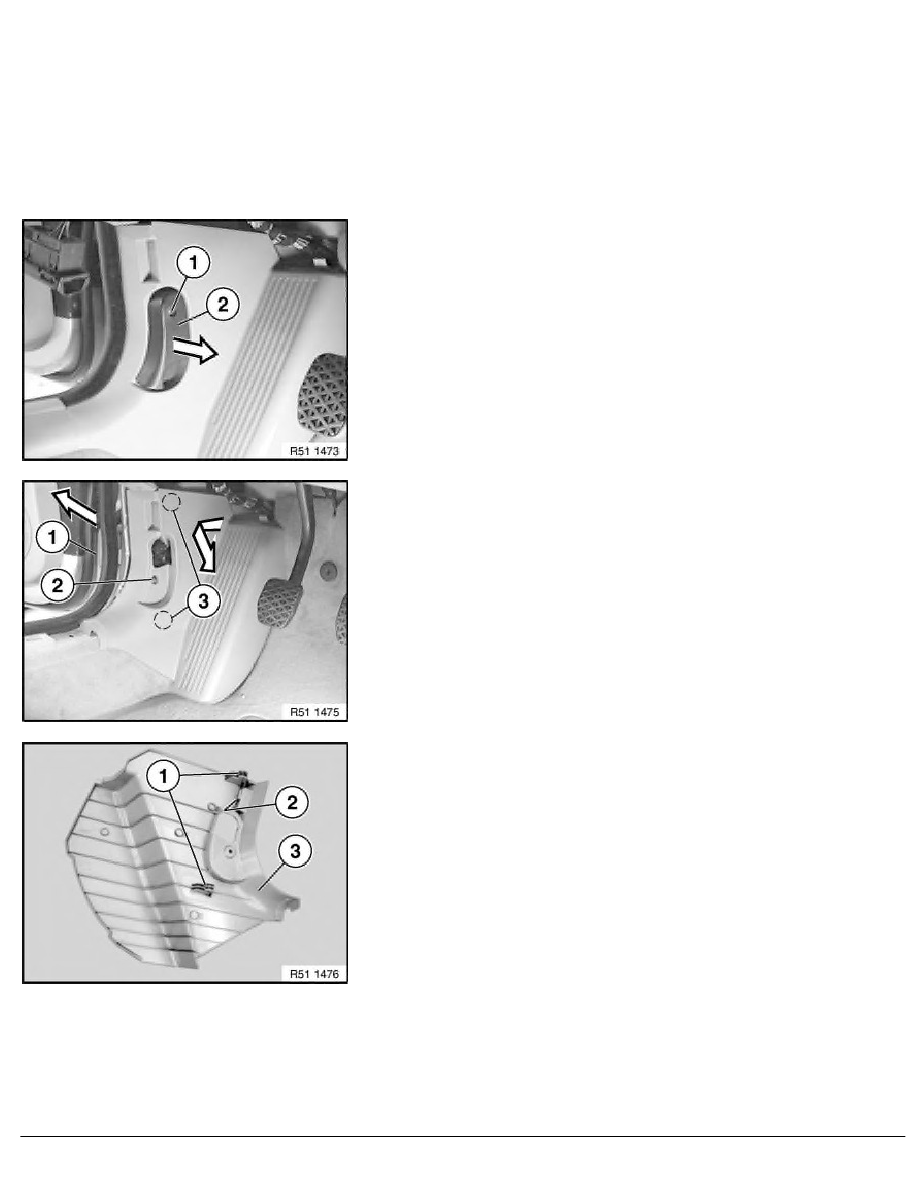

Release screw (1) and remove release lever (2).
Remove mucket (1) in area of footwell trim.
Release screw (2).
Push footwell trim (3) a little to rear (guides (3) are unlocked) and
detach footwell trim towards inside.
Installation:
Guides (1) must not be damaged.
Replacement only:
Lift out insert (2) in footwell trim (3).
