3 Series E46 318ti (N42) COMP
51 43 251
Removing and installing / replacing trim for
rear left or right roof pillar (compact)
Note:
Removal of panel for rear roof pillar is the same for mechanical
and electric adjusters.
Open trunk lid and side window.
Partly detach mucket in area of C-pillar trim (1).

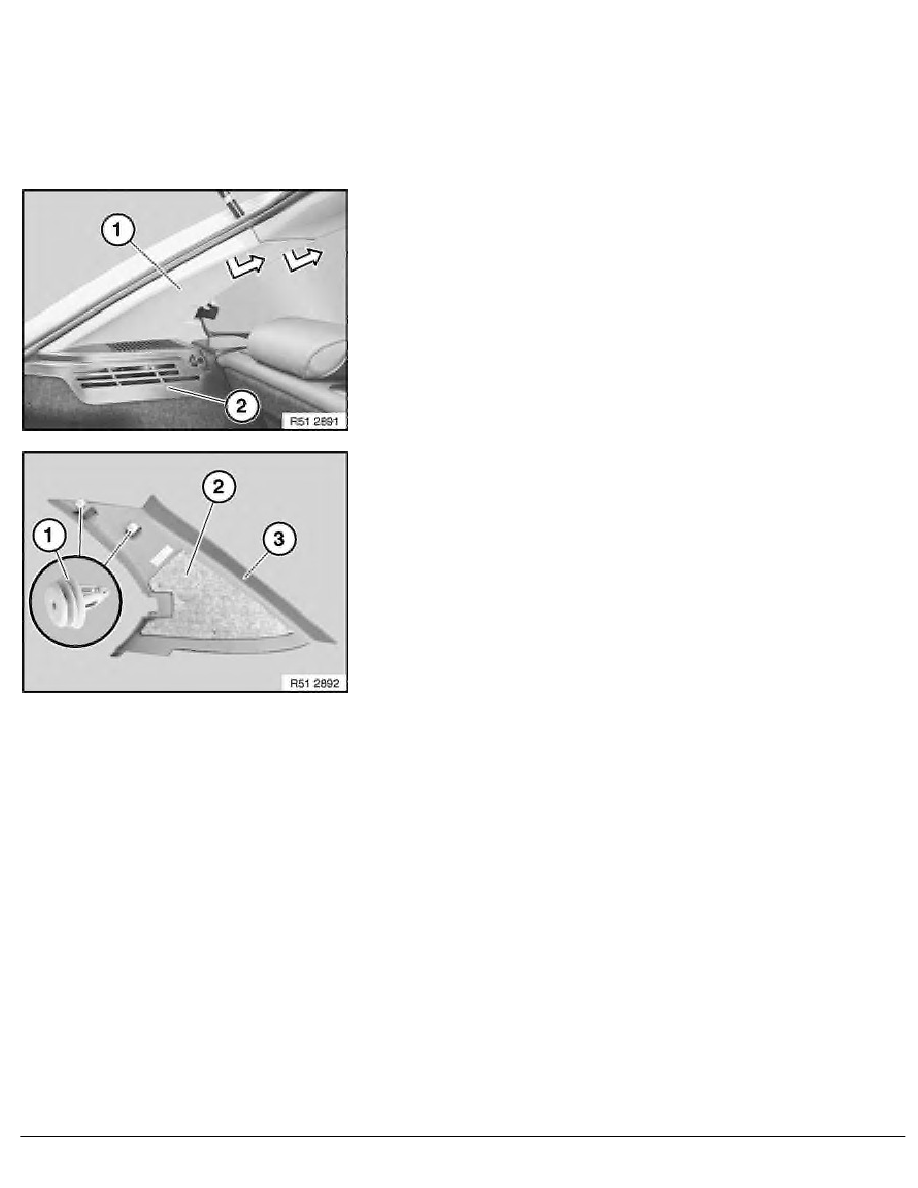

Unclip panel (1) inwards for rear roof pillar.
Lift out panel (1) from mounting (2) for storage tray.
Installation:
If necessary, replace faulty clips (1) of panel (3).
Insulating mat (2) must be fitted.
