3 Series E46 318ti (N42) COMP
51 46 030
Removing and installing/replacing trim for
belt guide (compact)
Remove rest side section on rear seat backrest.

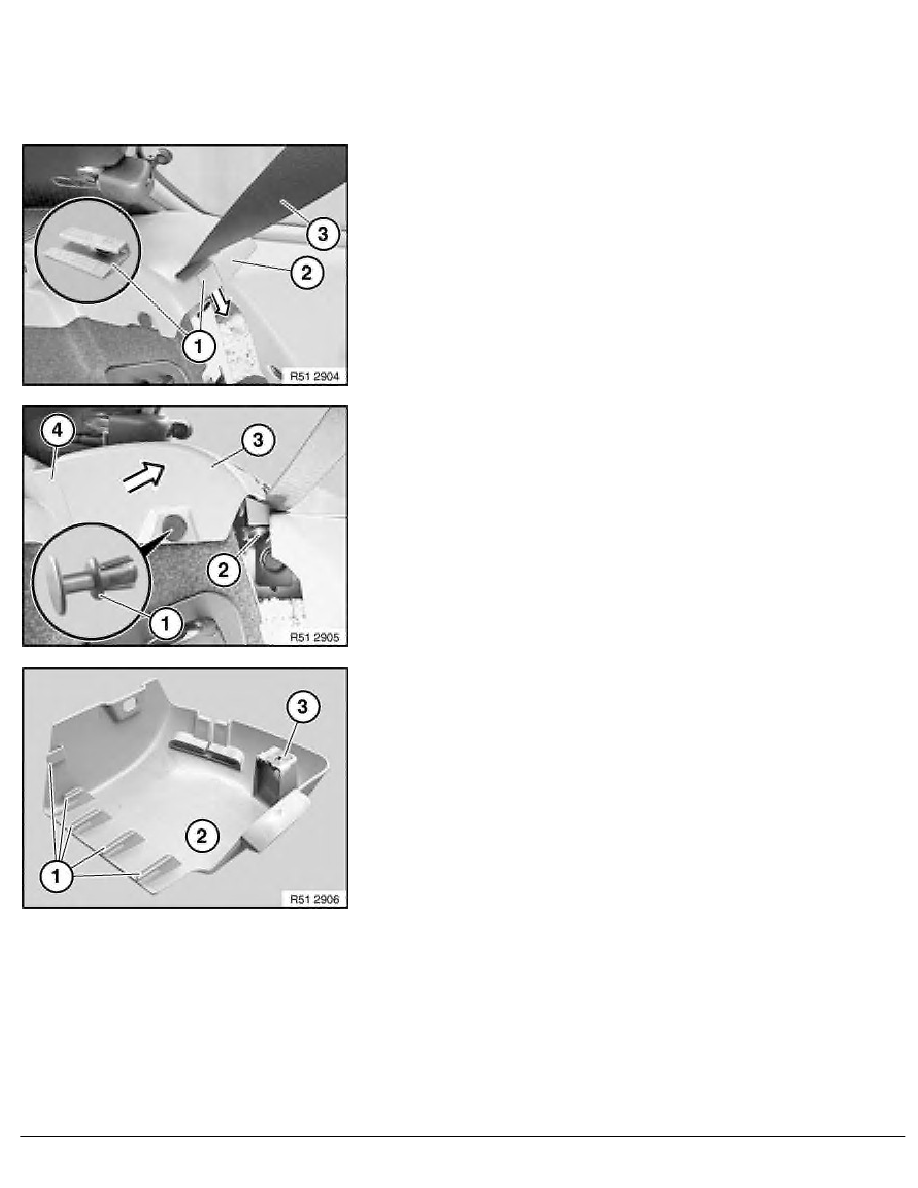

Lever out trim (1) and remove towards bottom.
Feed strap (3) out of trim (2).
Release expansion rivet (1) and screw (2).
Lever trim (3) forwards out of mounting (4) and remove.
Installation:
Guides (1) on trim (2) must not be damaged.
If necessary, replace metal nut (3).
RA Removing and installing/replacing trim for belt guide (compact)
BMW AG - TIS
12.02.2013 10:09
Issue status (12/2007) Valid only until next DVD is issued
