3 Series E46 318ti (N42) COMP

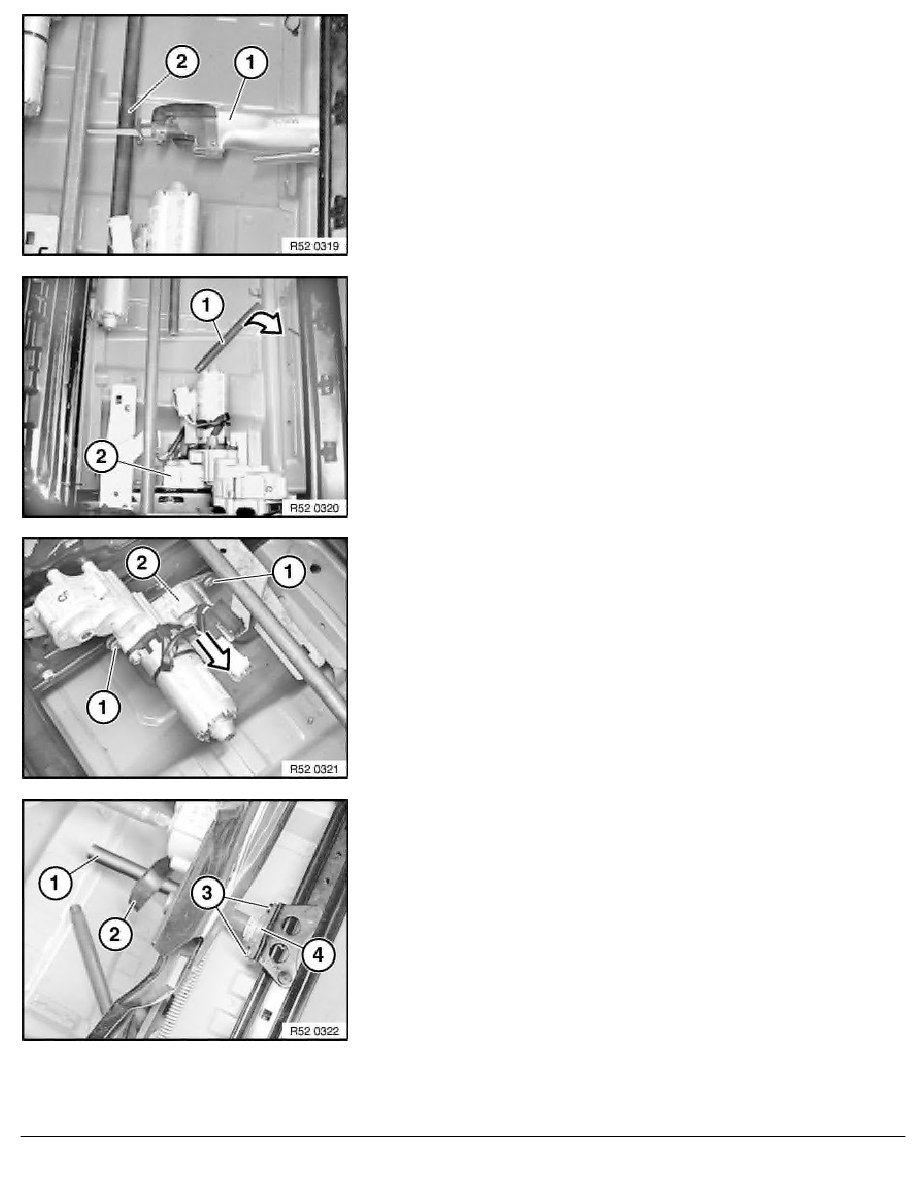

Using a pneumatic saw (1),
cut through drive shaft (2) from rear.
Remove drive shaft (1) from gear (2).
Release screw (1) and remove gear (2).
Over rest of drive shaft (1),
adjust front seat,
release screws on floor panel
and remove front seat.
Note:
If gear (4) is faulty,
detach cover (2),
release screws (3),
and remove gear (4).
RA Additional work (normal/ electric) with defective drive for longitudinal adjustm
