3 Series E46 318ti (N42) COMP
65 12 000

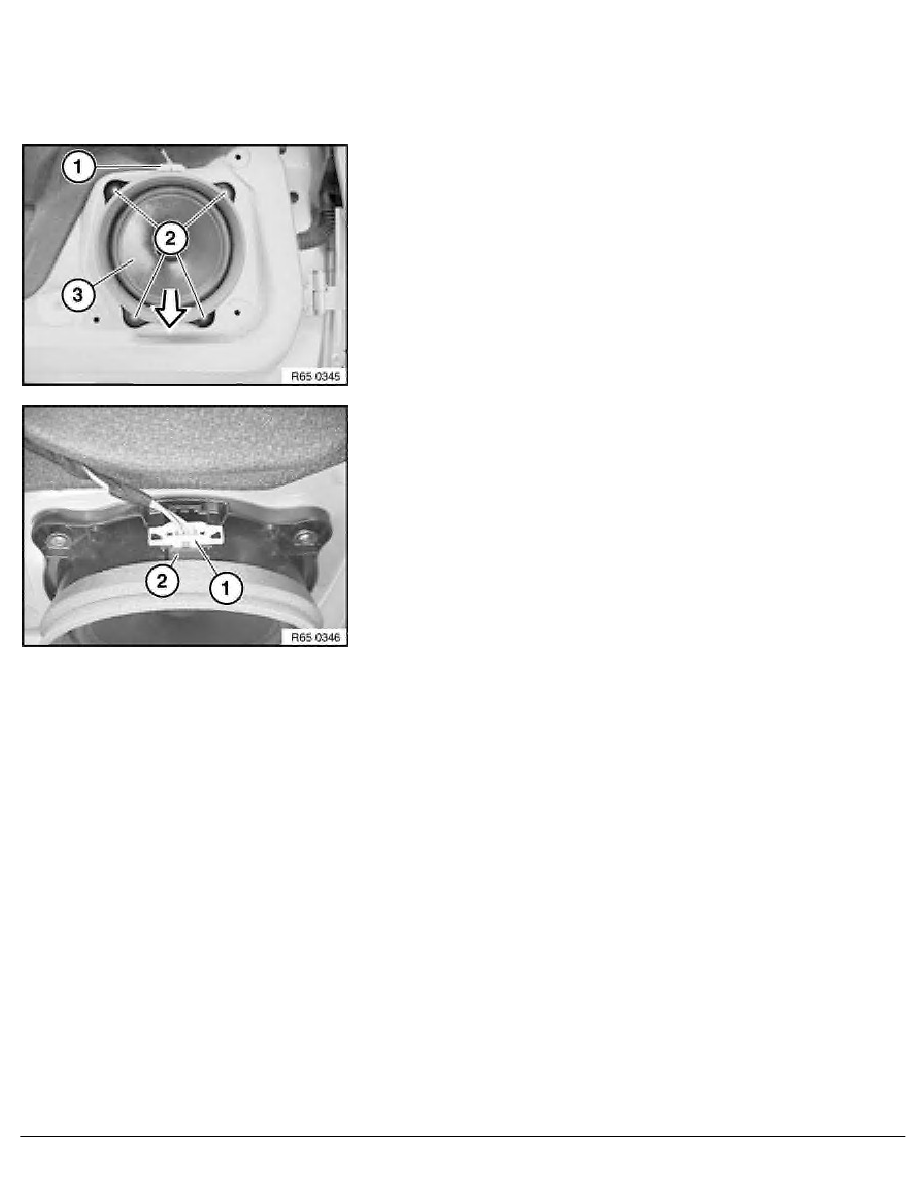

Removing and installing/replacing speaker
(door trim panel)
Remove front door trim panel.
Disconnect plug connection (1).
Note:
Secure speaker against falling out.
Release screws (2) and remove speaker (3) in direction of
arrow.
Installation:
Insert plug (1) in inner plug housing (2).
RA Removing and installing/replacing speaker (door trim panel)
