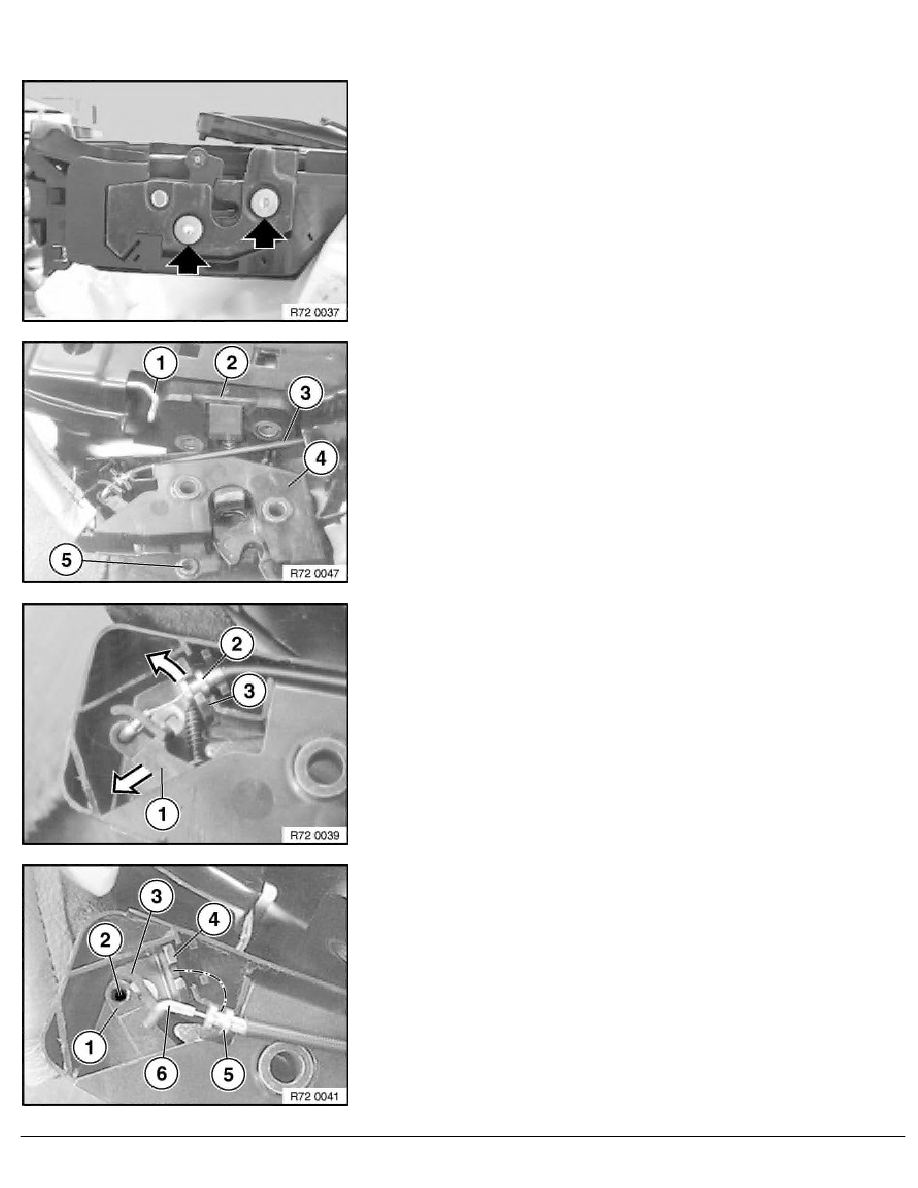

Perform function check with rear seat
back-rest folded forward.
Release screws and fold back backrest lock.
Summary, backrest lock, left:
1.
Actuating rod for backrest lock
2.
Lower section, backrest lock, left
3.
Bowden cable of safety belt
4.
Backrest lock, left
5.
Bush for mounting of actuating rod
backrest locking fixture
Unhooking seat belt Bowden cable from backrest lock:
Press lever (1) forwards in direction of arrow.
Remove sleeve for Bowden cable (2) from holder (3) in backrest
lock.
Unhook Bowden cable from lever (1).
Summary, backrest lock, left:
1.
Actuating lever for backrest lock in left backrest lock
2.
Hole for Bowden cable of safety belt
3.
Retaining lug for Bowden cable on actuating lever for
backrest lock
4.
Bracket for Bowden cable of safety belt
5.
Bowden cable sleeve
6.
Bowden cable of safety belt
RA Removing and installing/replacing lock for left rear seat backrest (through-load
