3 Series E46 330d (M57TU) TOUR
22 11 001
Replacing right engine mount (M57)
Remove front splash guard.
Detach intake neck from air cleaner.
Remove air cleaner element.

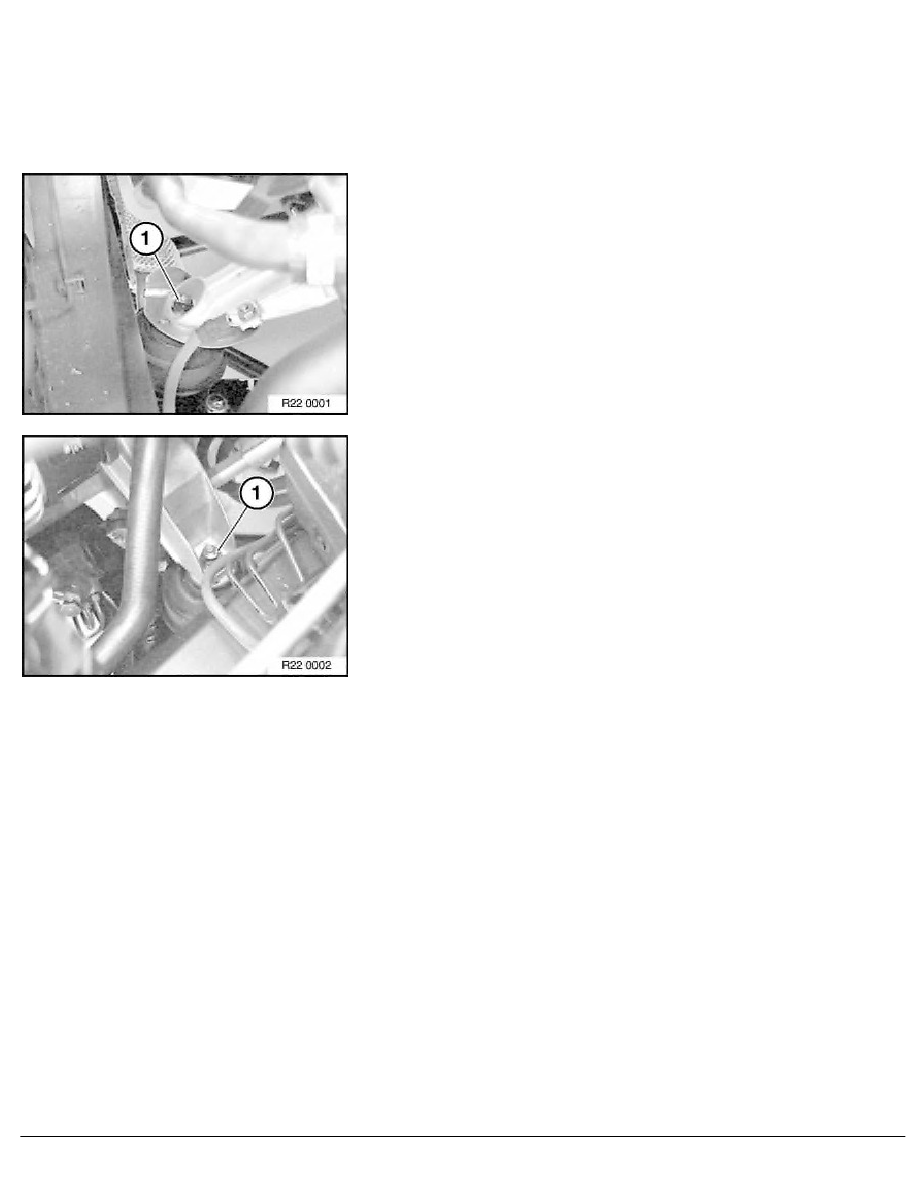

Release nut (1) on right engine mount.
Release nut (1) on left engine mount.
Raise engine with special tool 00 0 200,
described in Removing oil sump.
Release screw connection for engine mount at bottom right.
Tilt engine mount out to one side and remove.
RA Replacing right engine mount (M57)
