3 Series E46 330i (M54) TOUR
Unfasten brake pipes.
(FR) from hydraulic control unit FR to front right wheel brake
(FL) from hydraulic control unit FL to front left wheel brake
(RR)from hydraulic control unit RR to rear right wheel brake
(RL) from hydraulic control unit RL to rear left wheel brake
Installation:
Tightening torque, 34 32 1AZ.

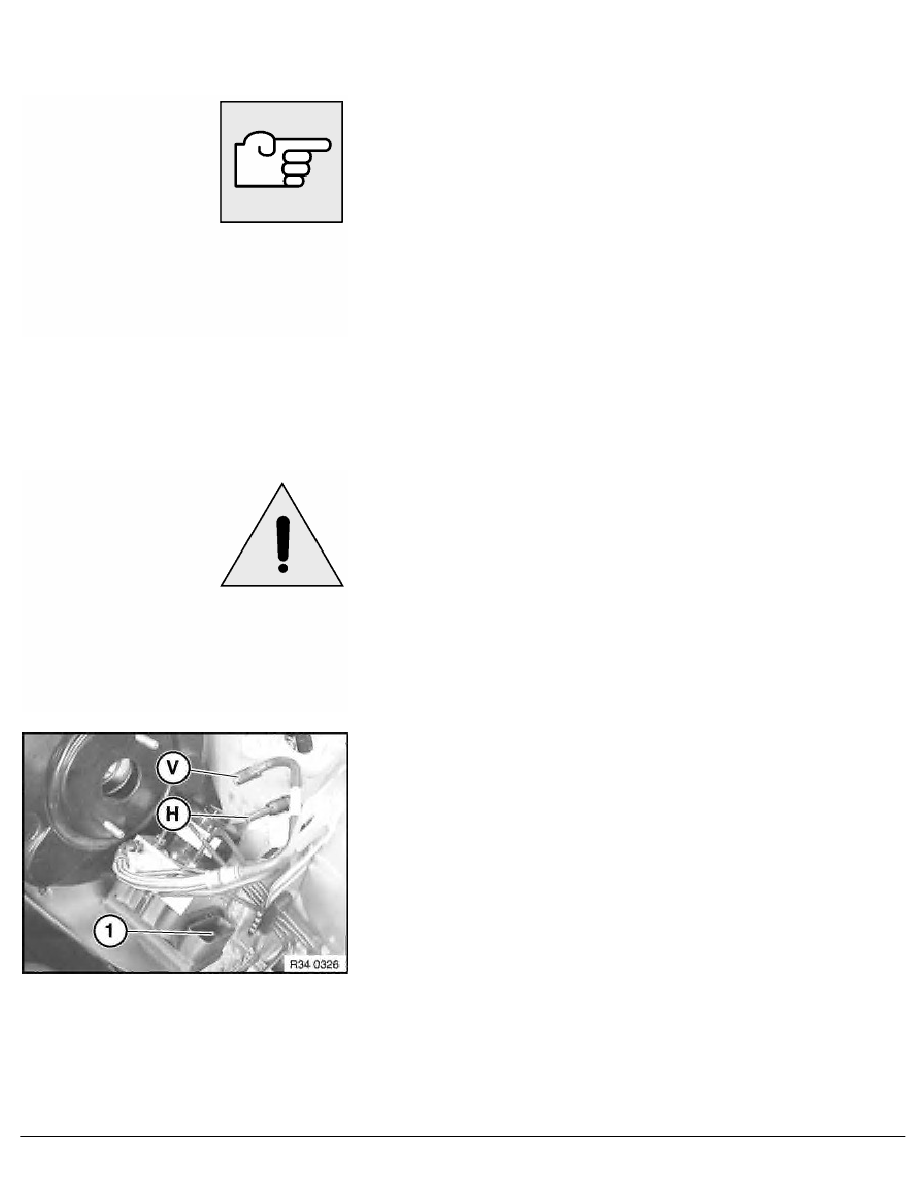

Release screw (1) and feed out DSC unit with retaining fixture
towards top.
RA Removing and installing/replacing DSC hydraulic unit (MK60)
