3 Series E46 330xd (M57) SAL
Installation:

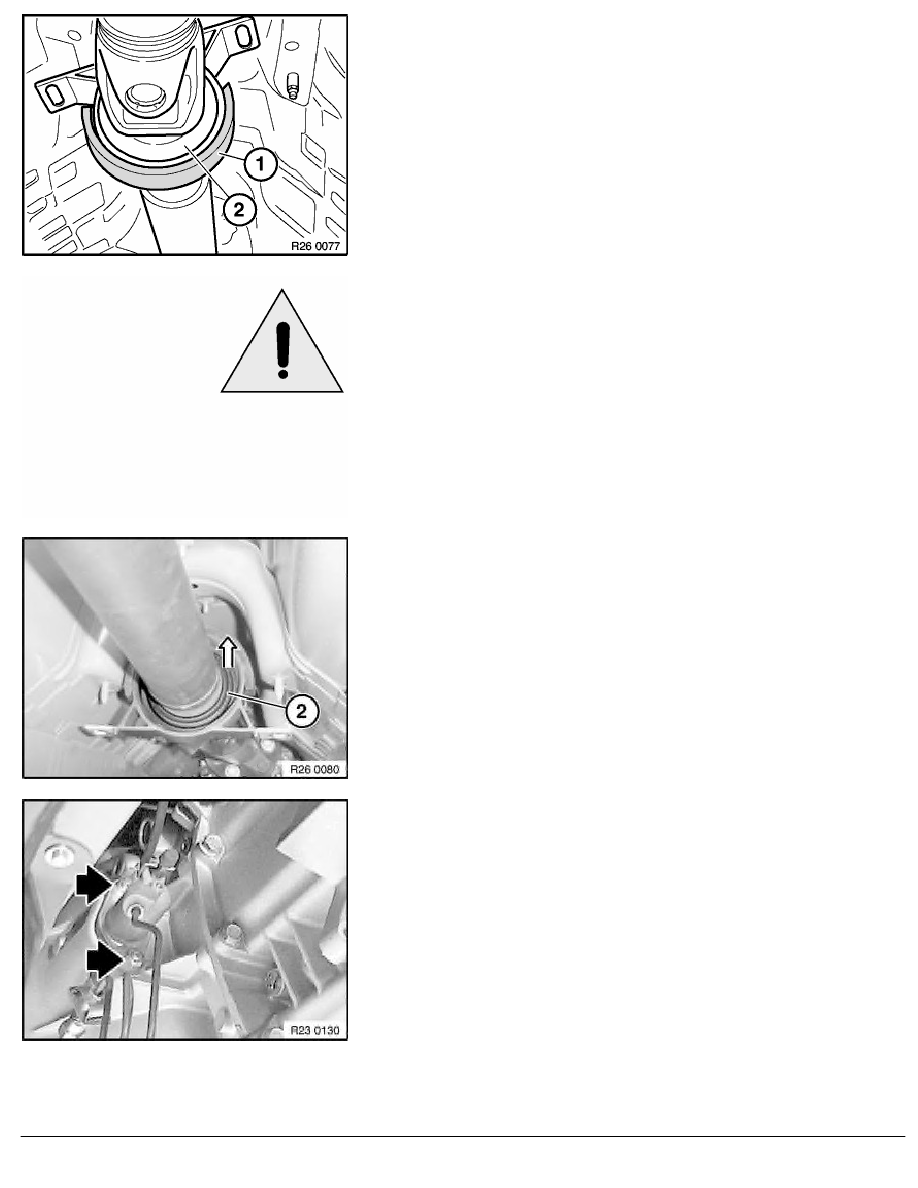

Pull off cover tape from butylene tape on both sides.
Stick butylene tape (1) to outside of center bearing (2).
Butylene tape,
refer to BMW Parts Service.
Important!
Remove butylene tape already attached to center bearing.
Clean adhesive area on center bearing and on body.
Then coat adhesive area on body with mineral oil.
This coating with oil is necessary to facilitate insertion of the
sticky butylene tape in the propeller shaft tunnel.
This prevents the butylene tape from being deformed.
Installation:
Press center bearing (2) into transmission tunnel.
Important!
Slowly relieve tension on clutch slave cylinder during removal
as otherwise air will be drawn in through sealing sleeve.
Release nuts and remove clutch slave cylinder. Pressure line
remains connected.
Tightening torque 21 52 5AZ .
RA Removing and installing transmission (GS5-39DZ, 4WD)
BMW AG - TIS
15.02.2013 20:00
Issue status (12/2007) Valid only until next DVD is issued
