3 Series E46 M3 CSL (S54) COUPE
Note:

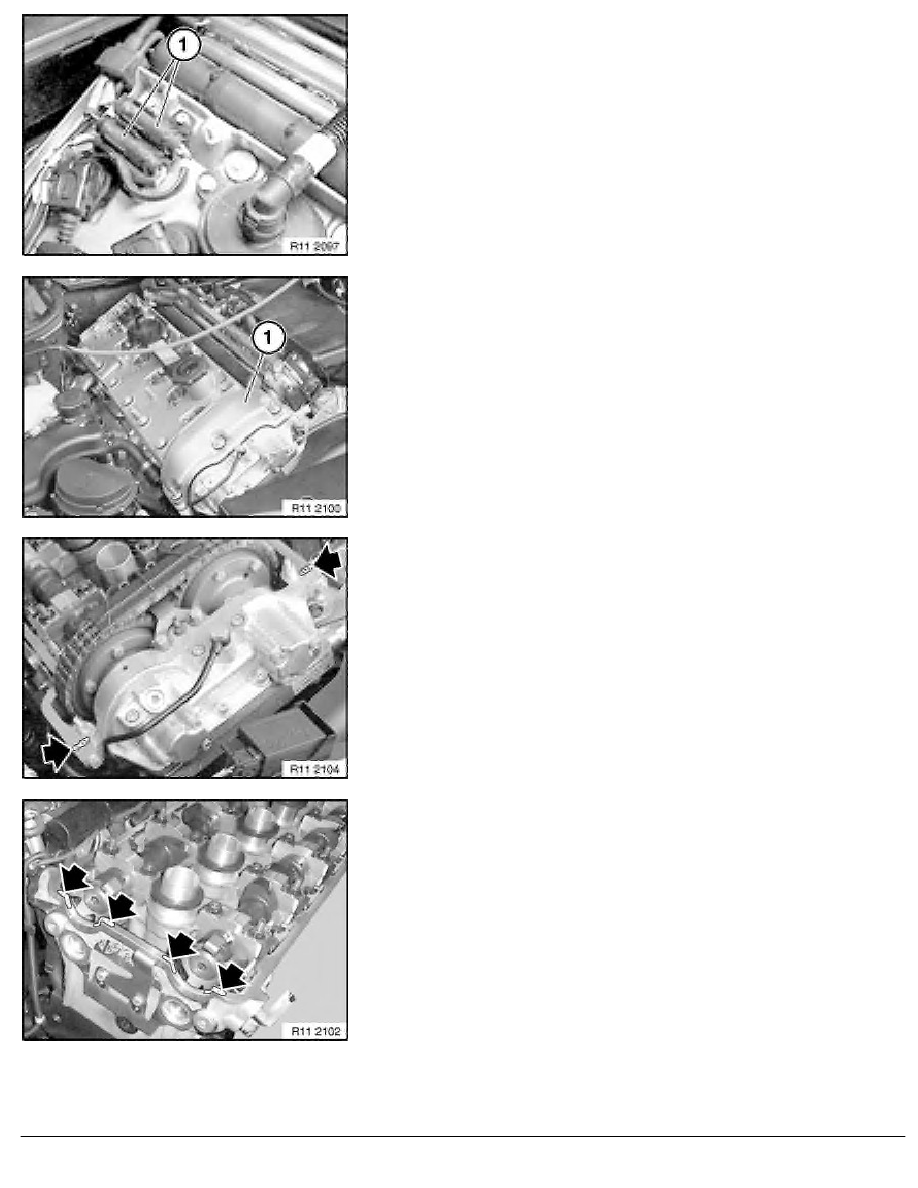

The plug housings of the oxygen sensors for cylinders 1 to 3
and 4 to 6 are different.
Unclip plug housing (1) from mounting.
Disconnect plug connections of oxygen sensors.
Feed oxygen sensor cables out of cable guide and lay to one side.
Remove ignition coils.
Lay ignition coil and oxygen sensor cables to one side.
Remove cylinder head cover (1).
Installation:
Remove sealing debris from sealing faces of cylinder head and
cylinder head cover.
Apply a sealing bead of Drei Bond 1209 (refer to BMW Parts
Service) on left and right sides at transition between cylinder head
and VANOS adjustment unit.
Note:
Illustration with engine removed.
Installation:
Apply a thin and even sealing bead of Drei Bond 1209 (refer
to BMW Parts Service) at transition to half-moon sections at
rear of cylinder head.
RA Removing and installing, sealing cylinder head cover (S54)
BMW AG - TIS
16.02.2013 14:47
Issue status (12/2007) Valid only until next DVD is issued
Copyright
Page - 3 -
