3 Series E46 M3 CSL (S54) COUPE
Installation:

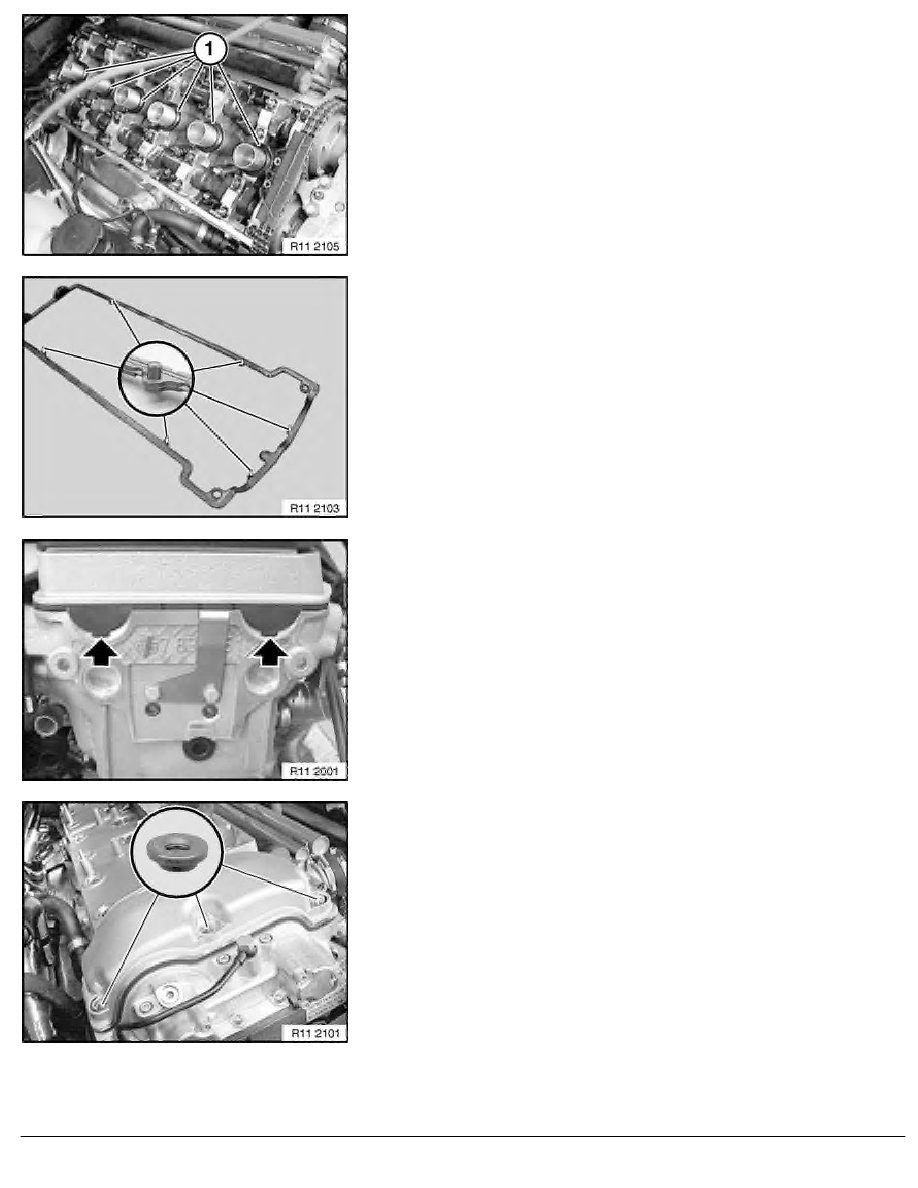

Replace sealing rings (1).
Note:
The gasket of the cylinder head cover is secured with guide pins
on the cylinder head and on the VANOS adjustment unit.
Installation:
Replace gasket of cylinder head cover. Preassemble gasket of
cylinder head cover on cylinder head.
Caution!
The guide pins may buckle very slightly during installation.
Make sure that guide pins are exactly fed into bore holes.
Illustration with engine removed.
Installation:
Make sure gasket is correctly seated on rear and front ends of
cylinder head.
Caution!
Different rubber gaskets:
Front low version.
Installation:
Replace rubber gaskets.
Install all cap nuts and align cylinder head cover.
Fit all cap nuts without pretension. Tighten down cap nuts in
diagonal sequence from inside to outside.
