3 Series E46 M3 CSL (S54) COUPE
11 33 545
Removing and installing/replacing rocker arm
shaft (S54)
(cylinder head removed)
(if necessary inlet or exhaust side)
Caution!
It is very easy for the adjustment plates to fall down.

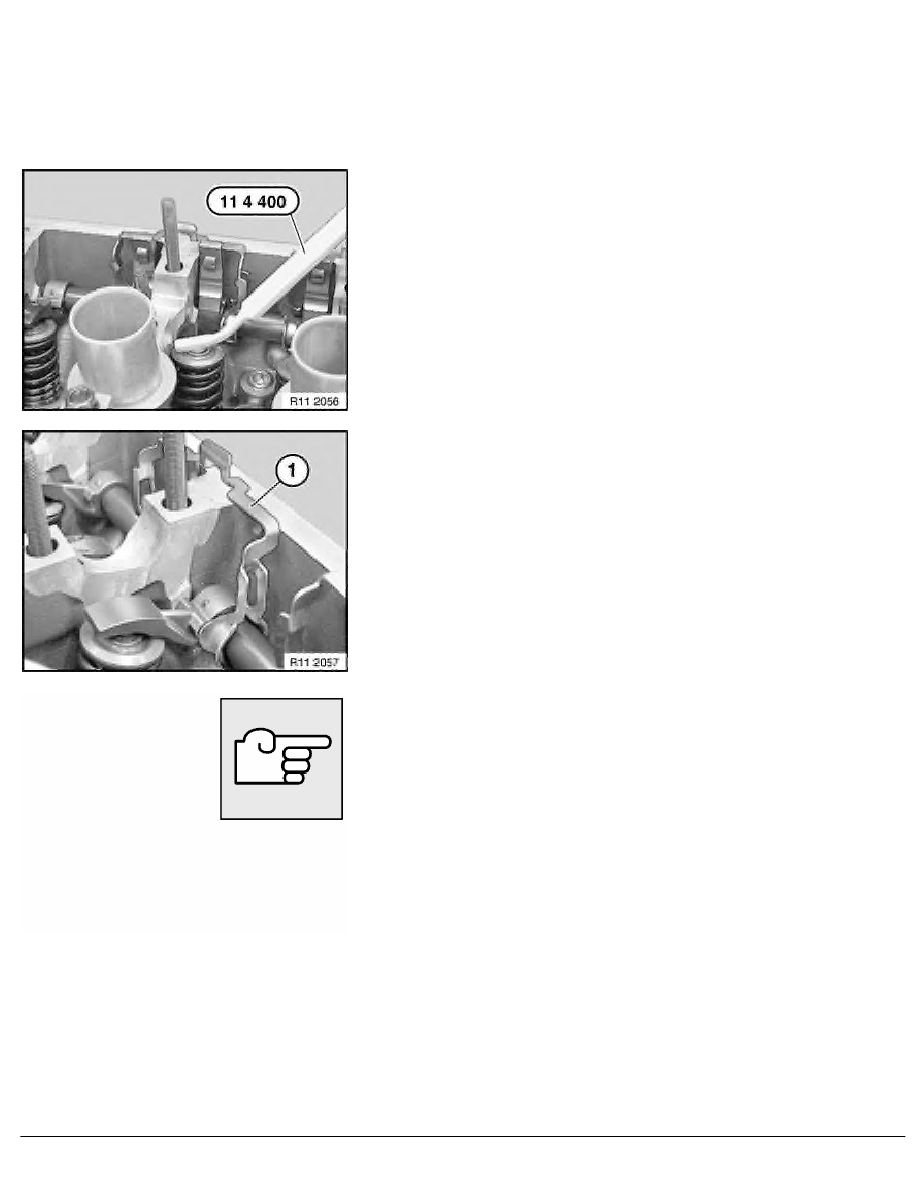

Raise rocker arm.
Note:
The special tool 11 4 400 is magnetic.
Remove all adjustment plates with special tool 11 4 400 and
set to one side in order.
Detach spring clip (1).
Remove camshaft sensor.
Installation:
Replace O-ring and screw.
RA Removing and installing/replacing rocker arm shaft (S54)
BMW AG - TIS
16.02.2013 15:33
Issue status (12/2007) Valid only until next DVD is issued
