3 Series E46 M3 CSL (S54) COUPE
Important!
Use only original clamps.
If hose clamps are used, there is the risk that the throttle
control linkage will stop or jam and no longer return to the idle
position.
Installation:

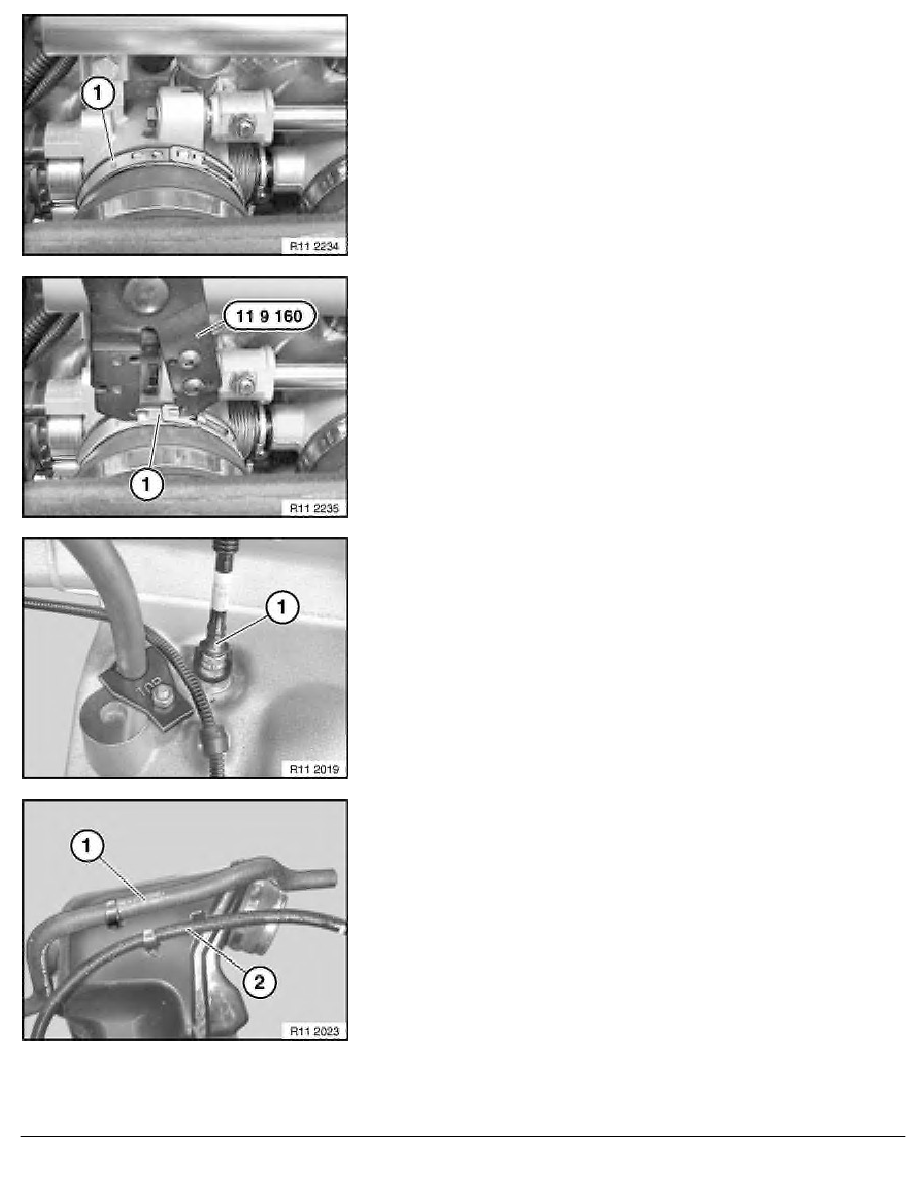

Push intake air manifold with hose clamps (1) preassembled in
installation position onto throttle assembly.
Installation:
Place special tool 11 9 160 as shown in illustration on lugs of
clamp.
Press hose clamps together with special tool 11 9 160 until
lock (1) engages.
Press locks and detach condensate return (1).
Note:
For purposes of clarity, shown on removed engine.
Important!
A vacuum line (1) and a wiring harness (2) are clipped into
place on the reverse side of the intake air manifold.
Raise intake air manifold slightly and detach from throttle
assembly.
Feed out vacuum line (1) and wiring harness (2).
Remove intake air manifold.
