3 Series E46 M3 CSL (S54) COUPE
Caution!

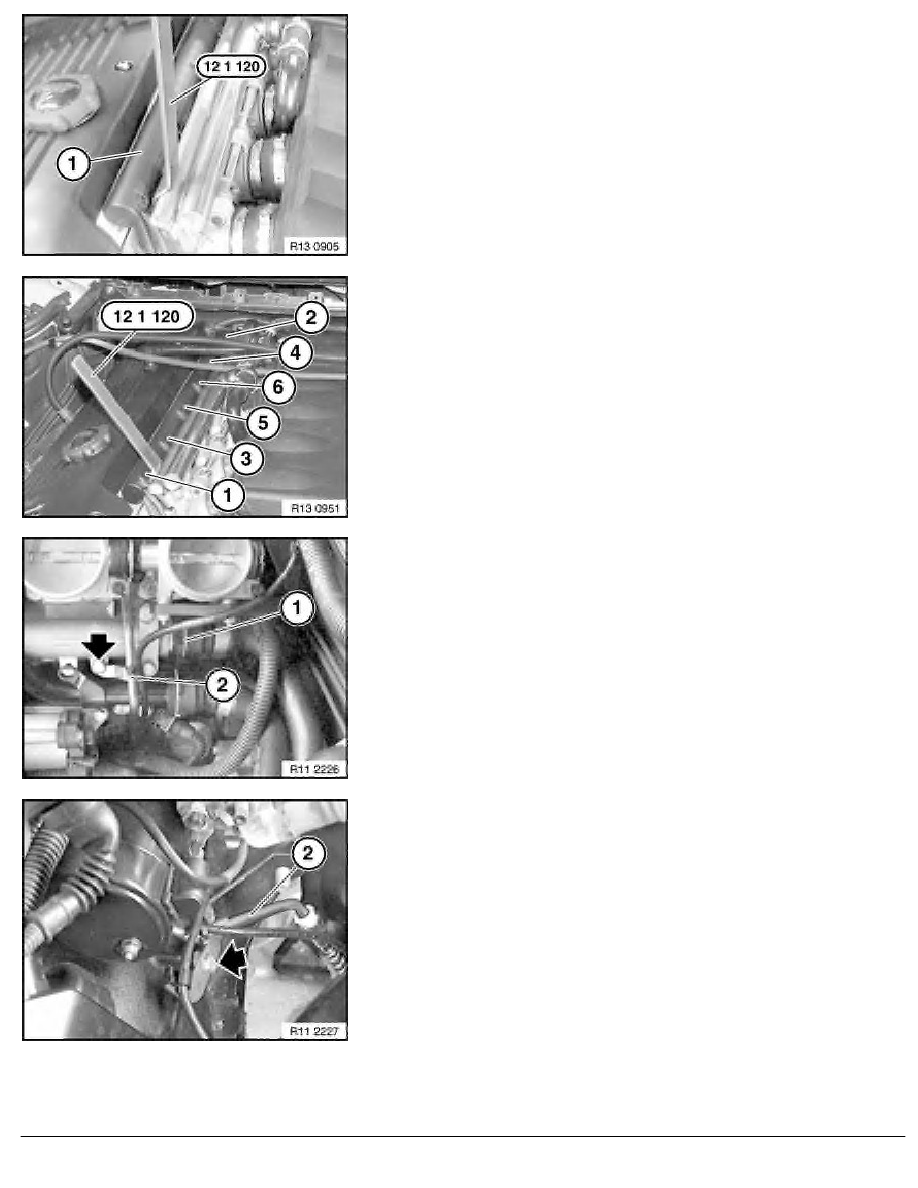

The connector strip (1) may break if it is removed without
special tool 12 1 120 .
Unlock connector strip with special tool 12 1 120 in
sequence 1 to 6.
Release upper screw of fuel line (2) from return line.
Unclip vacuum line from holders on fuel line.
Release lower screw of fuel line (2) from engine block.
Follow instructions for unlocking fuel line.
Unlock fuel feed line and detach from fuel line (2).
RA Replacing fuel line (S54)
