3 Series E46 M3 CSL (S54) COUPE

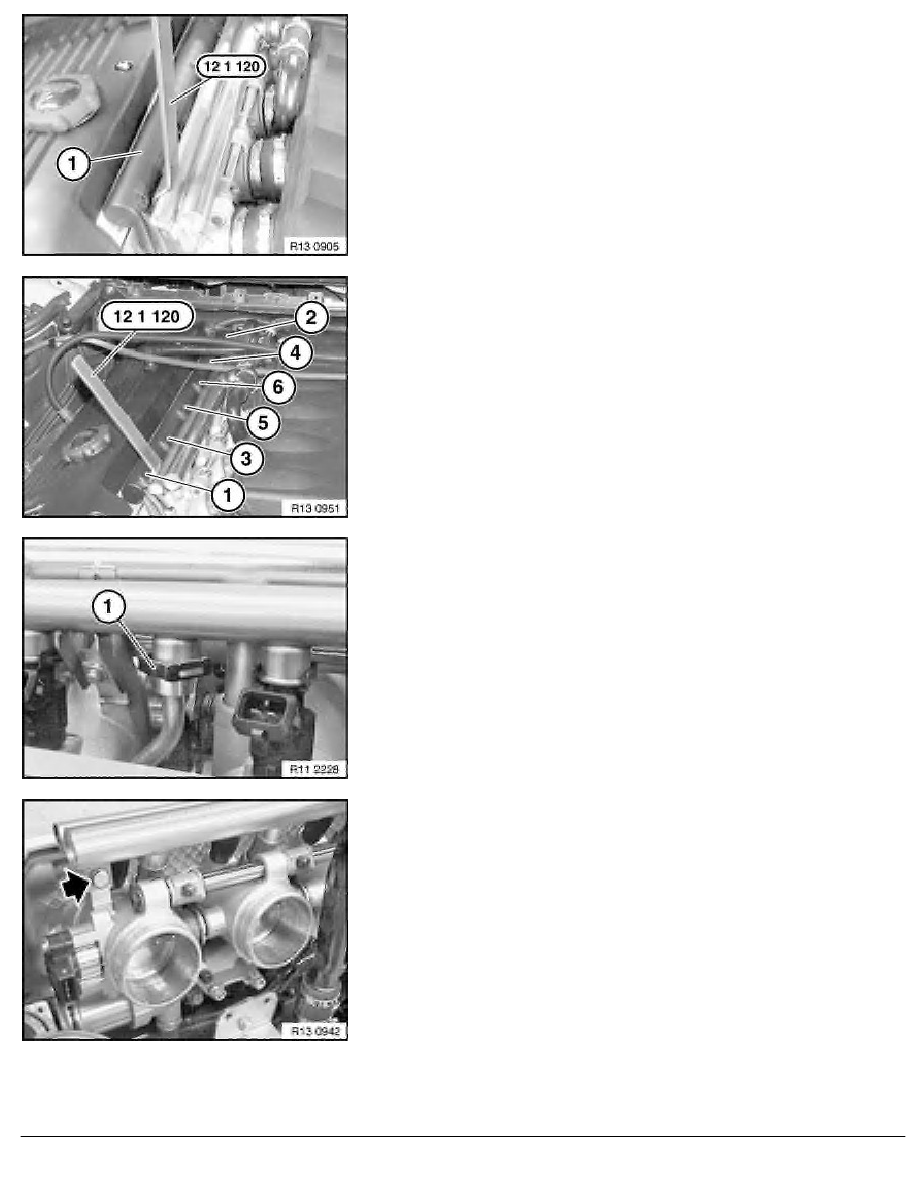

Caution!
The connector strip (1) may break if it is removed without
special tool 12 1 120 .
Unlock connector strip with special tool 12 1 120 in
sequence 1 to 6.
Lay connector strip to one side.
Detach retainer (1). Pull fuel line out of fuel injector rail.
Recycling:
Catch and dispose of escaping fuel.
Release screw connection of fuel injector rail and air pipe on left
and right.
Pull out fuel injector rail towards top.
Recycling:
Catch and dispose of escaping fuel.
RA Removing and installing/replacing a fuel injector (S54)
