3 Series E46 M3 CSL (S54) COUPE

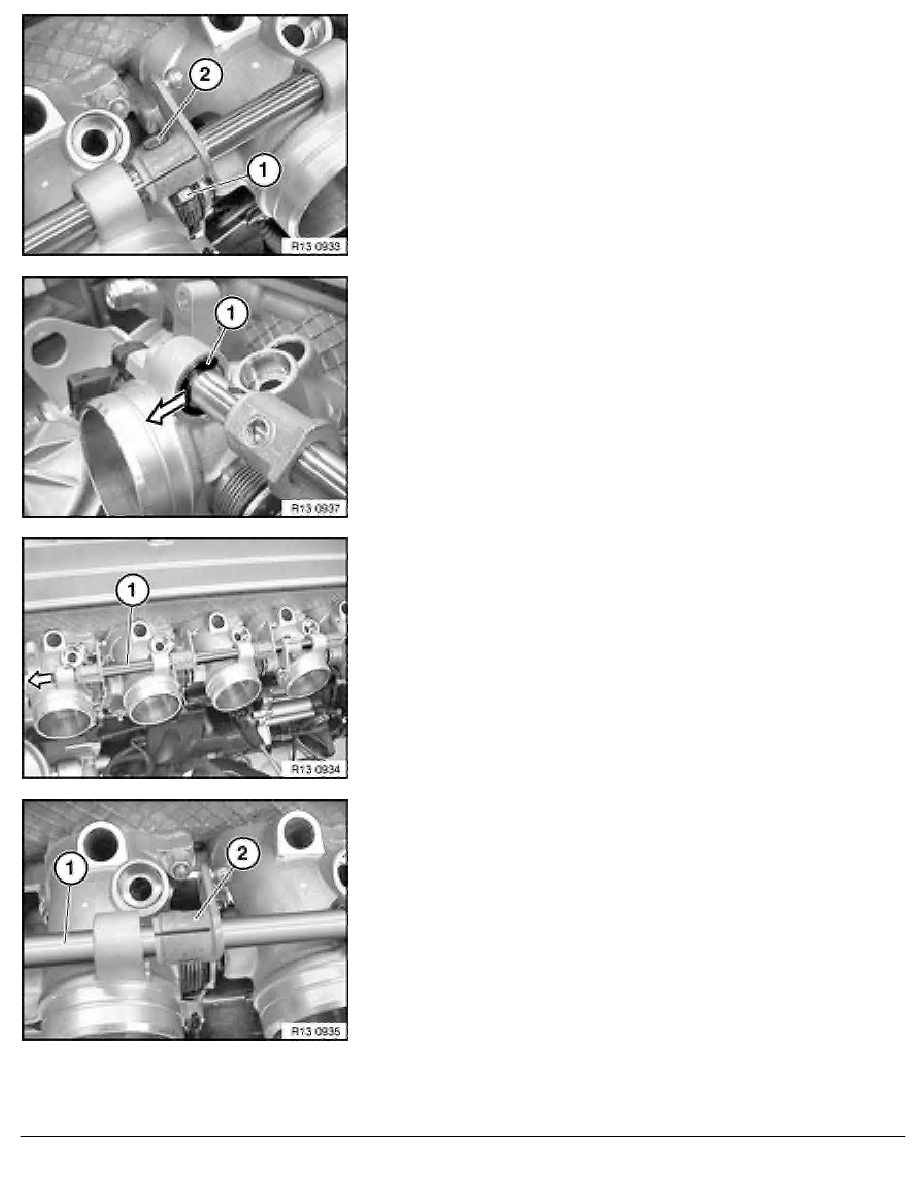

Release screw connection of actuating lever with actuating shaft
on all throttle valve assemblies.
Always grip screw (2) and turn nut (1) in so doing.
Detach lock washer (1) from actuating shaft.
Withdraw actuating shaft (1) in direction of arrow from throttle
valve assemblies.
Note:
If actuating shaft cannot be withdrawn, turn actuating lever to left
or right.
Support actuating lever (2) when withdrawing actuating shaft (1).
RA Removing and installing/sealing a throttle valve assembly (S54)
