3 Series E46 M3 CSL (S54) COUPE

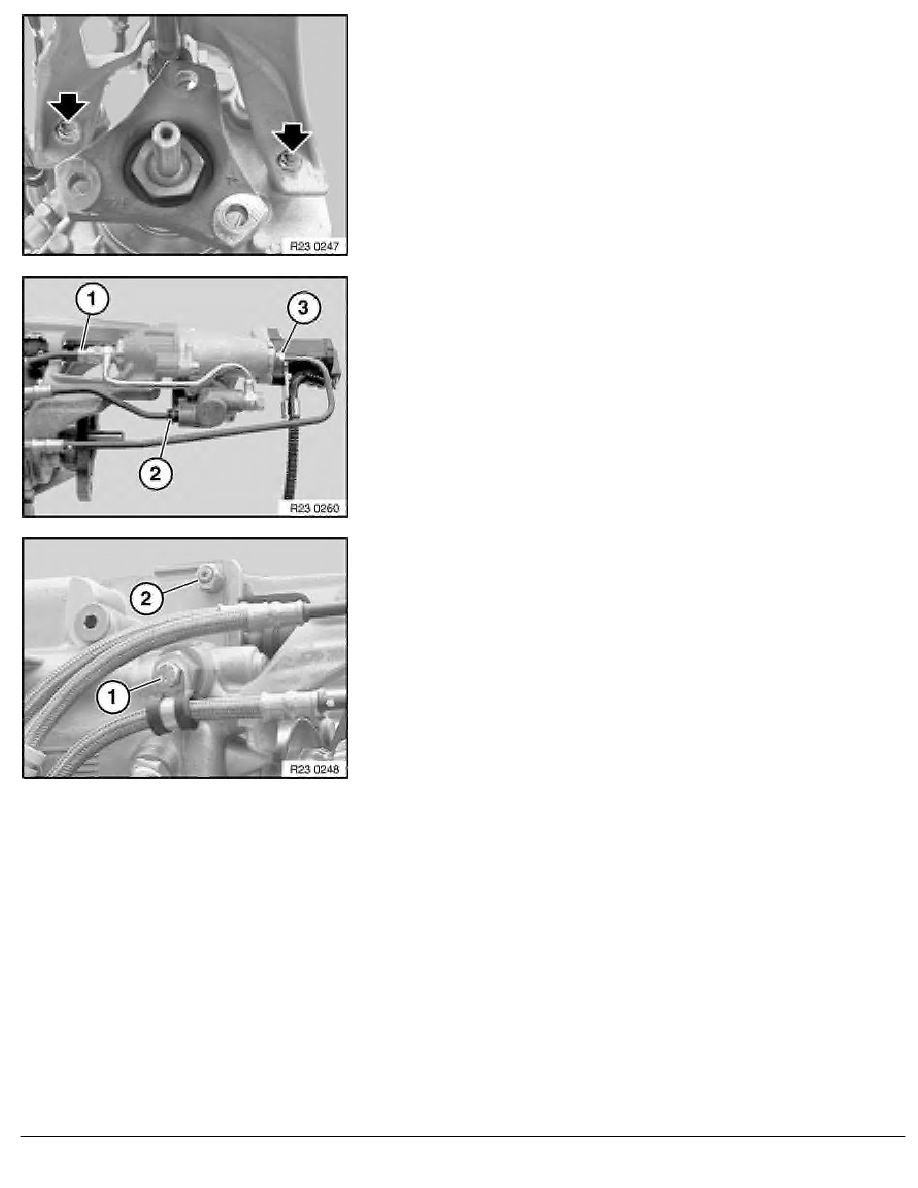

Release screws on actuator.
Installation:
-
Insert screws with Loctite 243
-
Tightening torque: 23 41 1AZ
Release union screws (1 ... 3) of hydraulic lines on actuator.
Installation:
-
Tightening torque: 23 52 7AZ
Release screw (1).
Installation:
Replace screw (1).
Release screw (2) on actuator.
Installation:
-
Tightening torque: 23 41 4AZ
Remove actuator.
RA Removing and installing/replacing actuator (S6S 420G SMG)
