3 Series E46 M3 CSL (S54) COUPE
Necessary preliminary tasks:
•
Remove front spring strut
Removing:

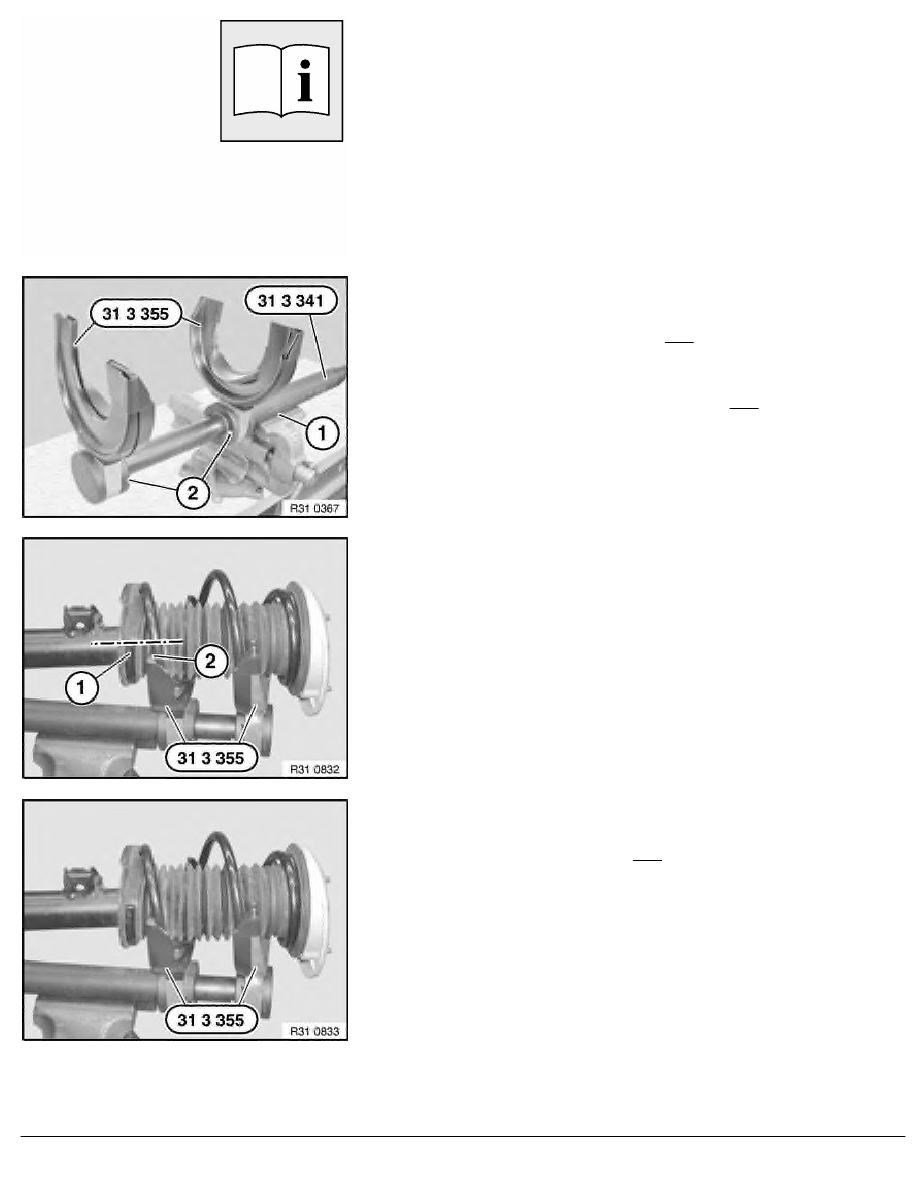

Clamp special tool 31 3 341 with guide (1) in vice.
Position special tools 31 3 355 with protective inserts from
above on special tool 31 3 341 until locking pins (2) can be felt
and heard to snap into place.
Check seating of special tools 31 3 355 with protective inserts,
correct if necessary.
Clean coil spring to remove all coarse dirt and mount on special
tools 31 3 355 .
Twist spring strut until end of coil spring (1) is flush with end (2)
of special tool 31 3 355 or protective insert.
Warning!
Coils of coil spring must be located completely in recesses of
special tools 31 3 355 with protective insert and when
tensioned!
Compress coil spring until stress on piston rod is relieved.
RA Replacing front left or right spring strut (M3CSL)
