3 Series E46 M3 CSL (S54) COUPE
41 00 ...
Stamping vehicle identification number
If the stamped VIN (Vehicle Identification Number) is
removed during repair work, this number must be stamped
again.
To stamp vehicle identification number, remove spring strut
at front right.

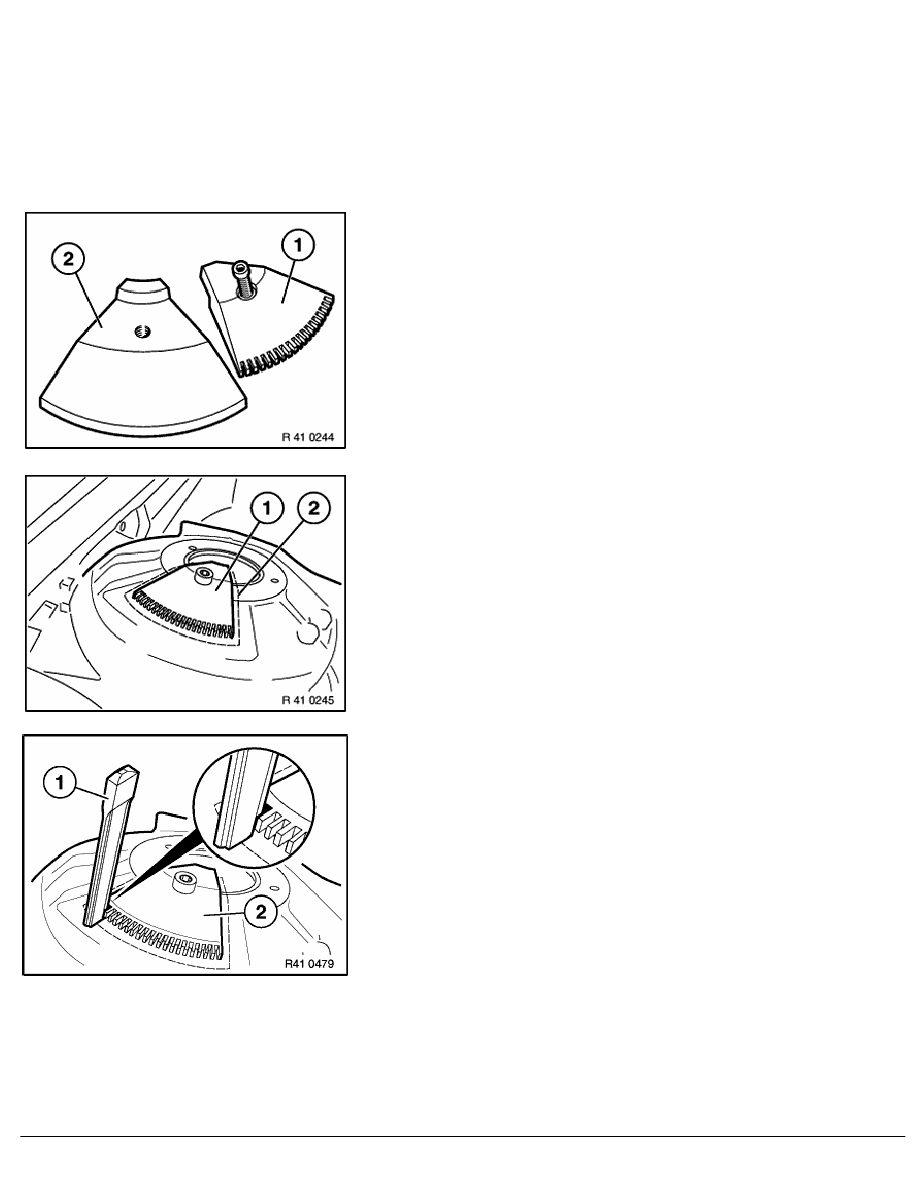

The special tool kit 41 1 030 for stamping the VIN comprises:
Guide plate 41 1 031 (1)
Counter plate 41 1 032 (2).
Fit special tool 41 1 032 (2) at bottom under spring strut
support plate.
Fit special tool 41 1 031 (1) at top on spring strut support plate
and secure.
Insert stamp numbers 41 1 002 (1) individually in special tool
41 1 031 (2) then stamp VIN.
In the event of component or body replacement by the garages,
clearly delimit the vehicle identification number at front and rear by
stamping a "+" in place of the BMW emblem.
RA Stamping vehicle identification number
