3 Series E46 M3 CSL (S54) COUPE

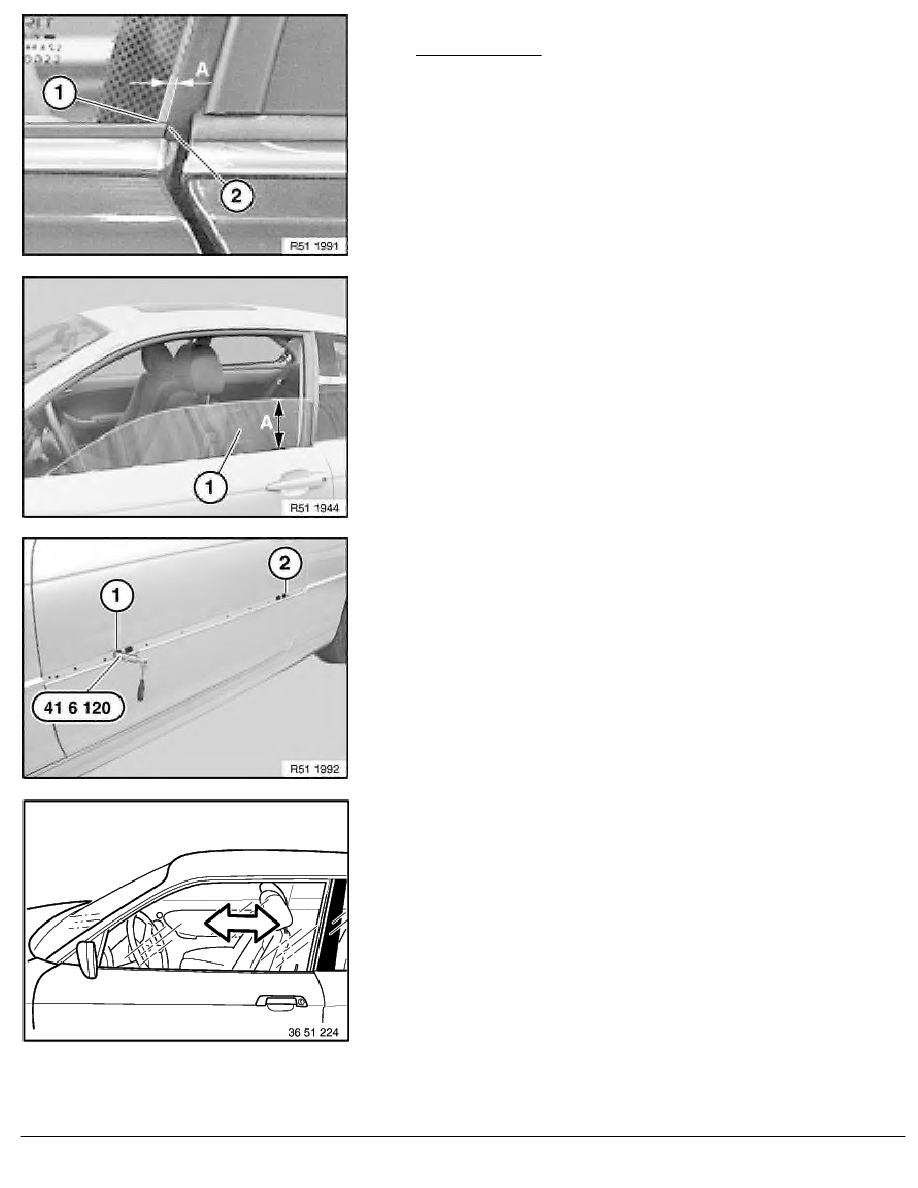

Longitudinal adjustment:
Ideal adjustment:
Door window rear edge (1) must protrude by distance (A) in front
of edge (2) of outer sealing lip of window cavity cover strip.
A= 1 to 2 mm
Lower door window glass down to dimension (A).
A= approx. 155 mm
Note:
To release Torx screws:
Turn to left.
When releasing rear Torx screw:
Grip with hexagon of special tool 41 6 120 .
Slacken Torx screws with special tool 41 6 120 through outer
adjustment bores (1) and (2).
Close door window glass and align in longitudinal direction.
Tighten down TORX screws with special tool 41 6 120 .
Tightening torque 51 32 2AZ.
RA Adjusting front left or right door window glass (coupé, convertible)
