3 Series E46 M3 CSL (S54) COUPE
66 20 510
Removing and installing/replacing control
unit (Park Distance Control)

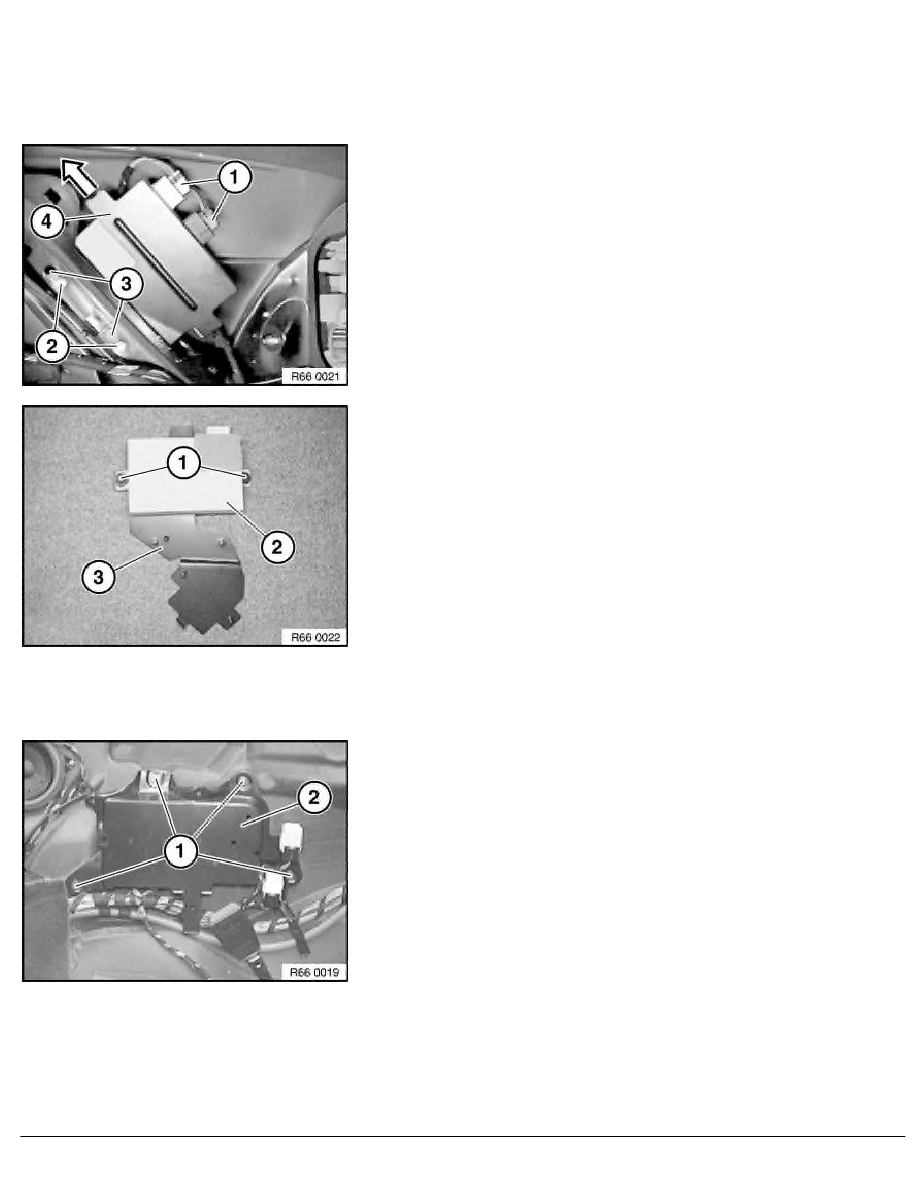

Saloon/Sedan, Coupé:
Detach left trunk wheel arch trim in rear area.
Disconnect plug connections (1).
Slacken screws (2).
Feed holder for control unit (4) in direction of arrow out of
elongated holes (3) and remove.
Replacement only:
Unscrew nuts (1).
Remove control unit (2) from control unit holder (3).
Convertible:
Remove lower section of side trim at rear right.
Release screws (1) and remove control unit holder (2).
