3 Series E90 318d (N47) SAL

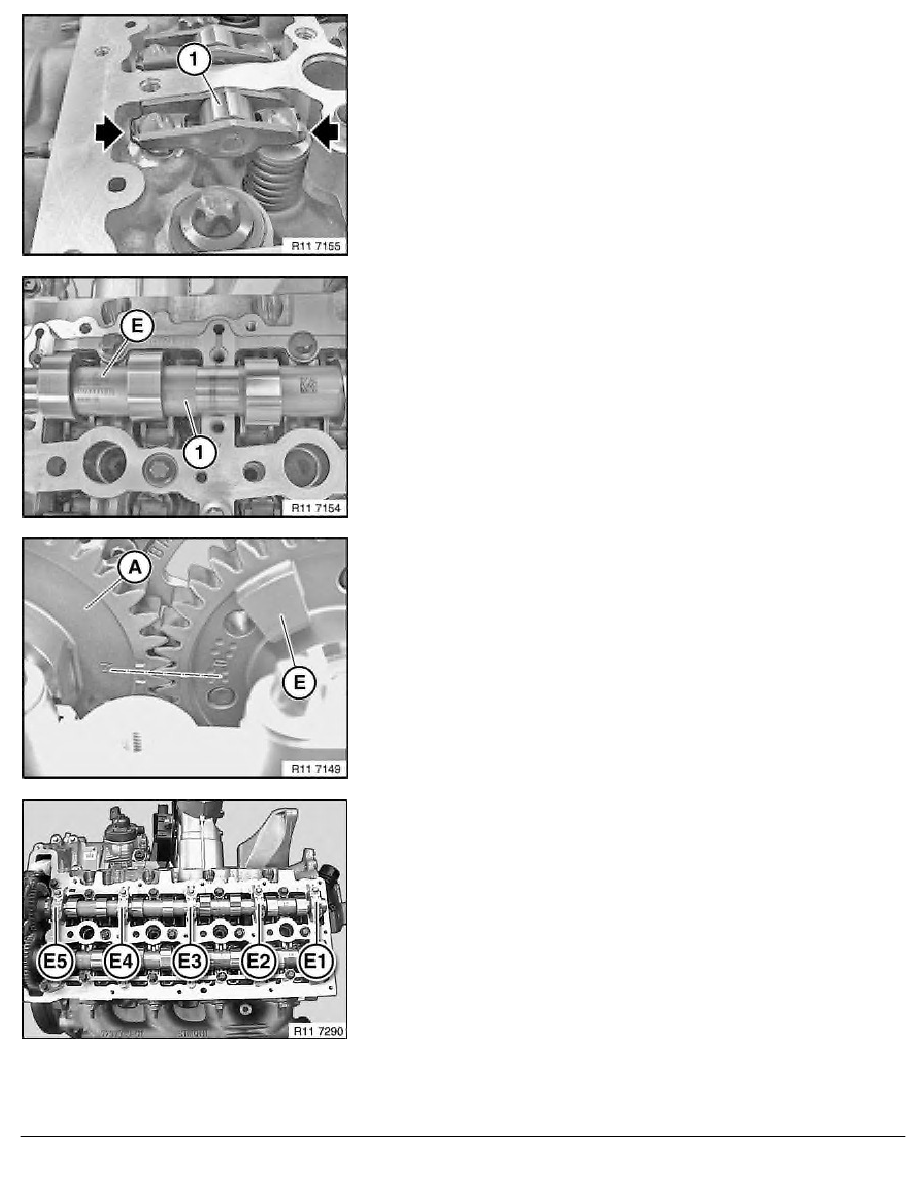

Check installation position of the roller cam followers (Risk of
damage!).
Install intake camshaft (1) marked with (E).
The marks on both camshafts (A and E) must agree when
installing intake camshaft (E) (see illustration).
Install intake camshaft.
Tighten bearing caps E1 to E5 by 1/2 a turn at a time on the
camshaft carrier, working from the inside outwards.
Tightening torque: 11 31 2AZ
.
RA Replacing inlet camshaft (N47, N47S)
BMW AG - TIS
20.01.2013 08:44
Issue status (12/2007) Valid only until next DVD is issued
Copyright
Page - 3 -
