3 Series E90 318d (N47) SAL

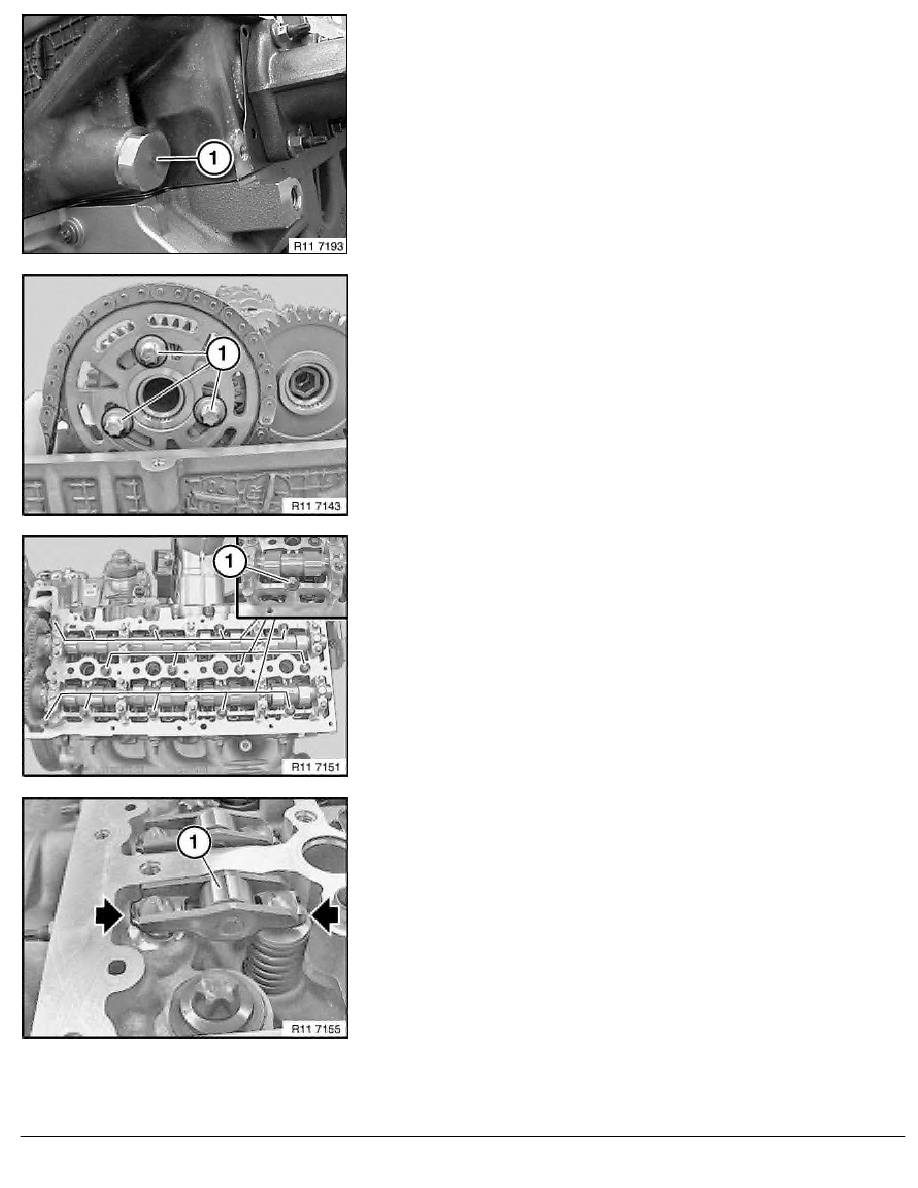

Release chain tensioner (1).
Release screws (1).
Remove chain sprocket from assembled shaft and feed out of
timing chain.
Place timing chain in cylinder head.
Note:
Both camshafts can be removed with the camshaft carrier.
Release all bolts (1) from outside inwards.
Installation:
Already used rocker arms (1) may only be reused in the same
position.
Remove rocker arm (1).
Set down all rocker arms (1) in neat order in special tool
11 4 480 .
RA Removing and installing/replacing all finger rocker arms (N47, N47S)
