3 Series E90 318d (N47) SAL
Note:

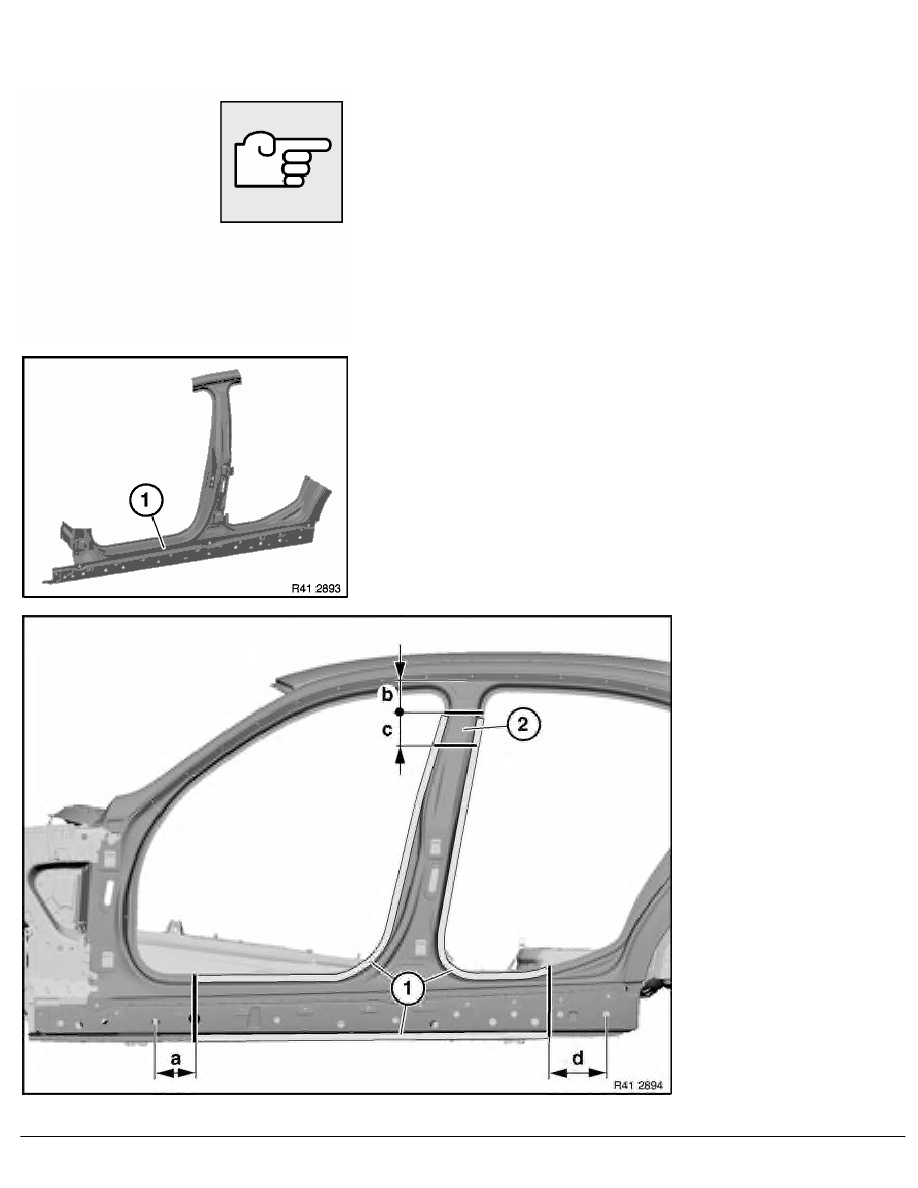

View from below
Open weld joint in area (1).
Installation information:
Mark new part in accordance with severance cuts on vehicle and cut.
Apply window glass adhesive to cavity acoustic baffle (1).
Apply adhesive in areas (2).
Adjust new part to fit with straightening attachment or universal mount.
RA Replacing cover for longitudinal member with left door pillar (partial replaceme
