3 Series E90 318d (N47) SAL
00

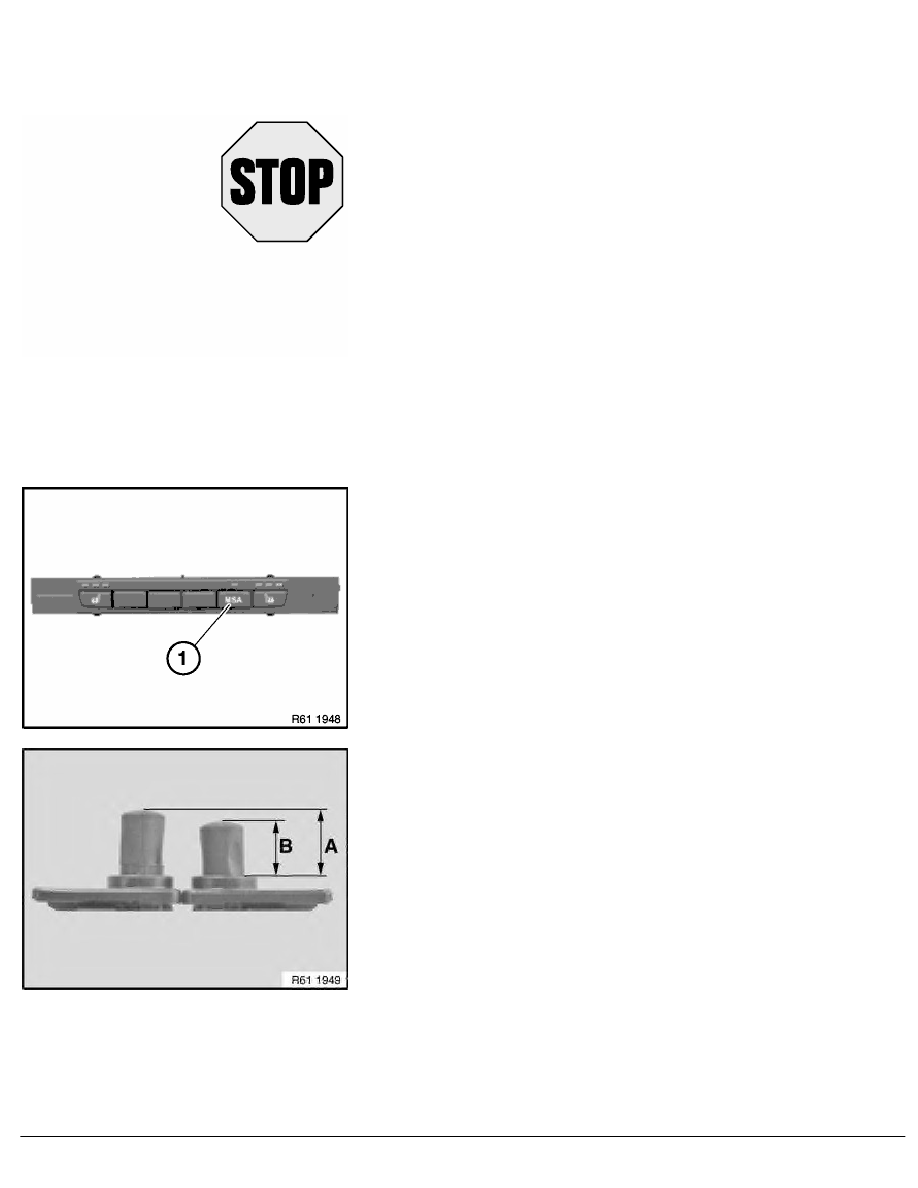

Safety information for working on vehicles
with automatic engine start-stop system
(MSA)
Warning!
If the engine hood/bonnet contact is pulled upwards
(workshop mode), the information "switch closed" is output.
The automatic engine start-stop function is active.
An automatic engine start may ensue.
Observe safety precautions when working on MSA vehicles.
Before carrying out practical work on the engine, always ensure tha
prevent automatic engine starting while work is being carried out in the engine compartment.
MSA function is deactivated by:
•
Deactivate MSA by means of button (1) in passenger
compartment
•
Open seat belt buckle and driver's door
•
Open engine bonnet/hood and ensure that engine
hood/bonnet contact is not in workshop mode
•
Workshop mode
A = 10 mm
•
Basic setting (engine hood/bonnet open)
B = 7 mm
To make sure that the engine hood/bonnet contact is at the
basic setting, if necessary press the hood/bonnet contact up
to the stop before starting work and slowly release.
RA Safety information for working on vehicles with automatic engine start-stop syst
BMW AG - TIS
20.01.2013 13:56
Issue status (12/2007) Valid only until next DVD is issued
