3 Series E90 318d (N47) SAL
61 31 101
Removing and installing/replacing switch for
backrest width adjustment
Necessary preliminary tasks:
•
Remove outer cover on front seat

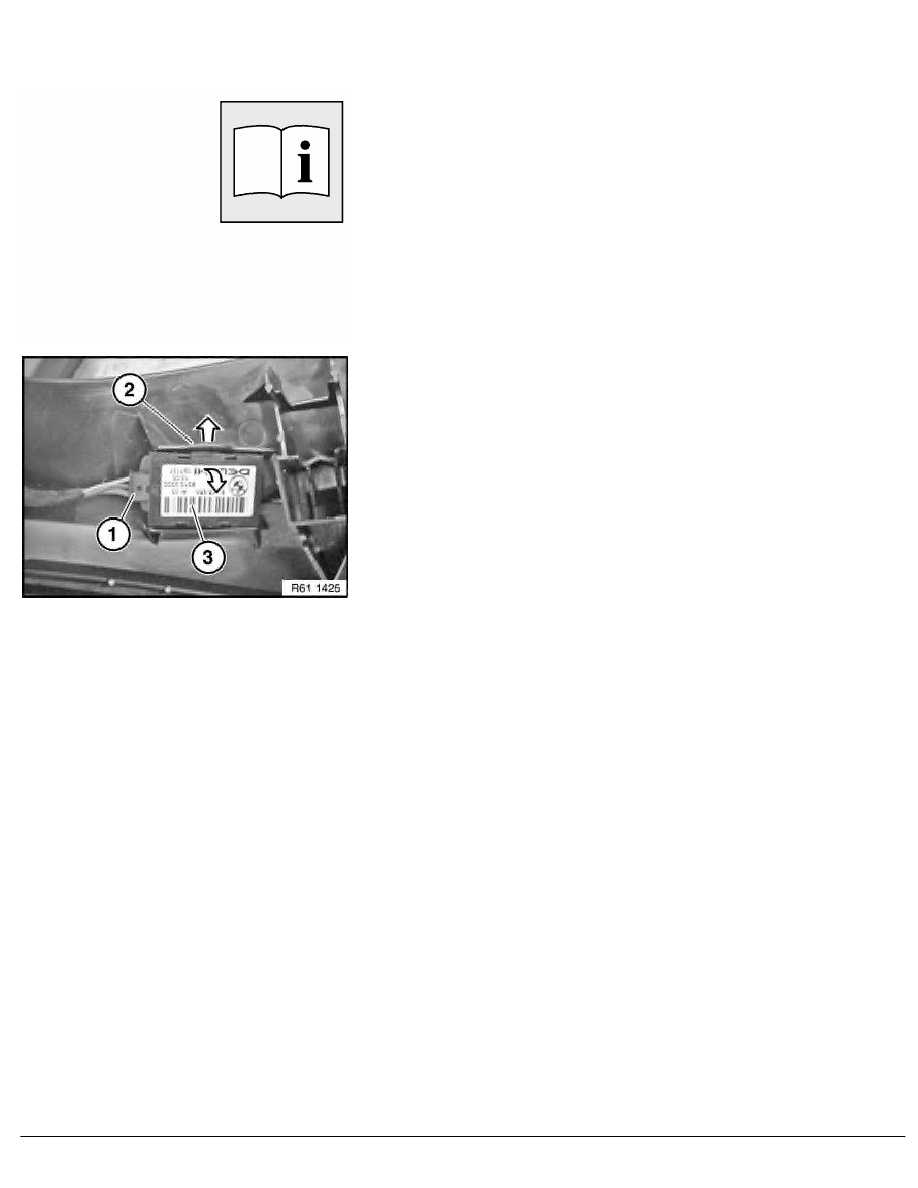

Disconnect plug connection (1).
Unlock retaining tab (2) in direction of arrow.
Remove switch for backrest width adjustment (3) in direction of
arrow.
RA Removing and installing/replacing switch for backrest width adjustment
