3 Series E90 335i (N54) SAL
11 13 000
Removing and installing, sealing or replacing
oil sump (N54) AWD
Important!
Aluminium screws/bolts must be replaced each time they are
released.
The end faces of aluminium screws/bolts are painted blue for
the purposes of reliable identification.
Jointing torque and angle of rotation must be observed
without fail (risk of damage).
Necessary preliminary tasks:
•
Remove engine splash guard.
•
Secure engine in installation position.
•
Lower front axle.
•
Remove left drive shaft.
•
Remove right drive shaft.
•
Remove front axle differential.
Note:
The lines must be detached from the engine oil sump in the case
of the optional extra automatic transmission; if necessary, detach
vane pump and place to one side.
Release bolts on transmission.
Release return hose.

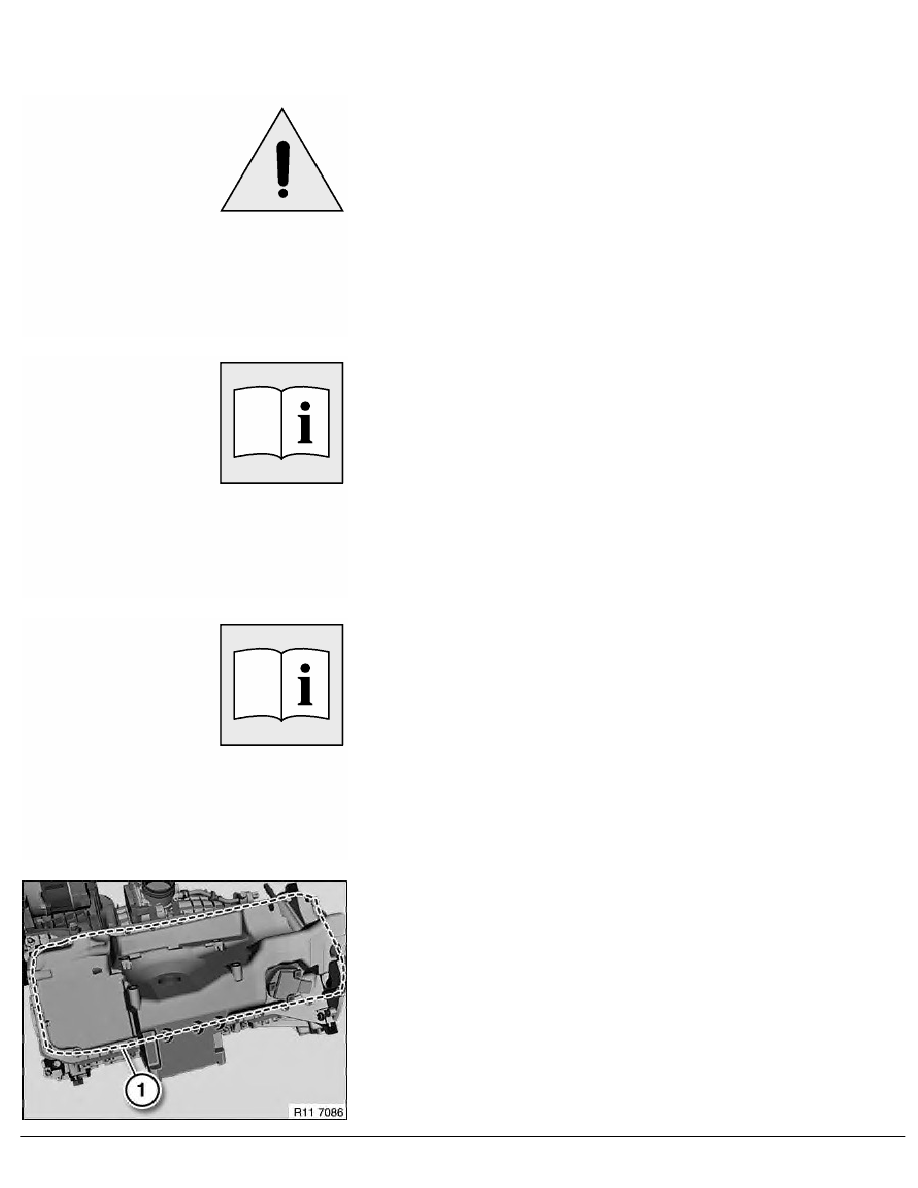

Release screws along line (1).
Tightening torque: 11 13 1AZ.
Installation:
Replace aluminium screws.
Replace all seals.
If necessary, release bolts (4), remove oil level sensor.
RA Removing and installing, sealing or replacing oil sump (N54) AWD
