3 Series E90 335i (N54) SAL
61 21 010
Removing and installing or replacing battery
Warning!
Observe safety instructions for handling vehicle battery.
Notes and instructions on Intelligent Battery Sensor IBS.
Necessary preliminary tasks:
•
Remove flap in luggage compartment panel on right
•
Disconnect battery negative lead
•
Remove distribution box

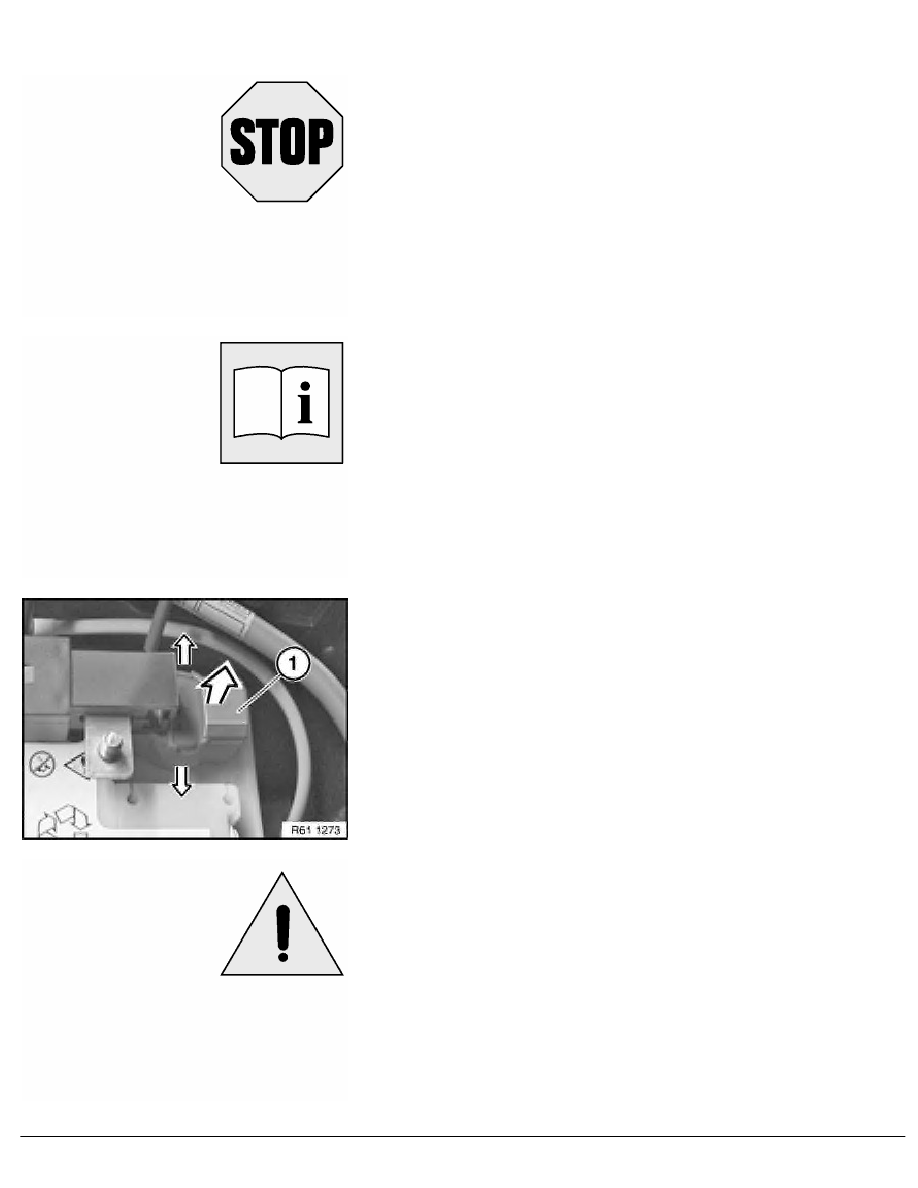

Unlock positive terminal cover (1) and remove.
Important!
Do not under any circumstances pull/lever safety battery
terminal off by force.
Battery crash element must be reinstalled!
•
On vehicles from build date 12/2006 or when IBS is
replaced since 12/2006, battery crash element has been
removed without replacement (IBS2006 replaces
IBS2004 from 12/2006 IBS2004)
