3 Series E90 335i (N54) SAL
61 31 241
Removing and installing/replacing engine
hood contact switch

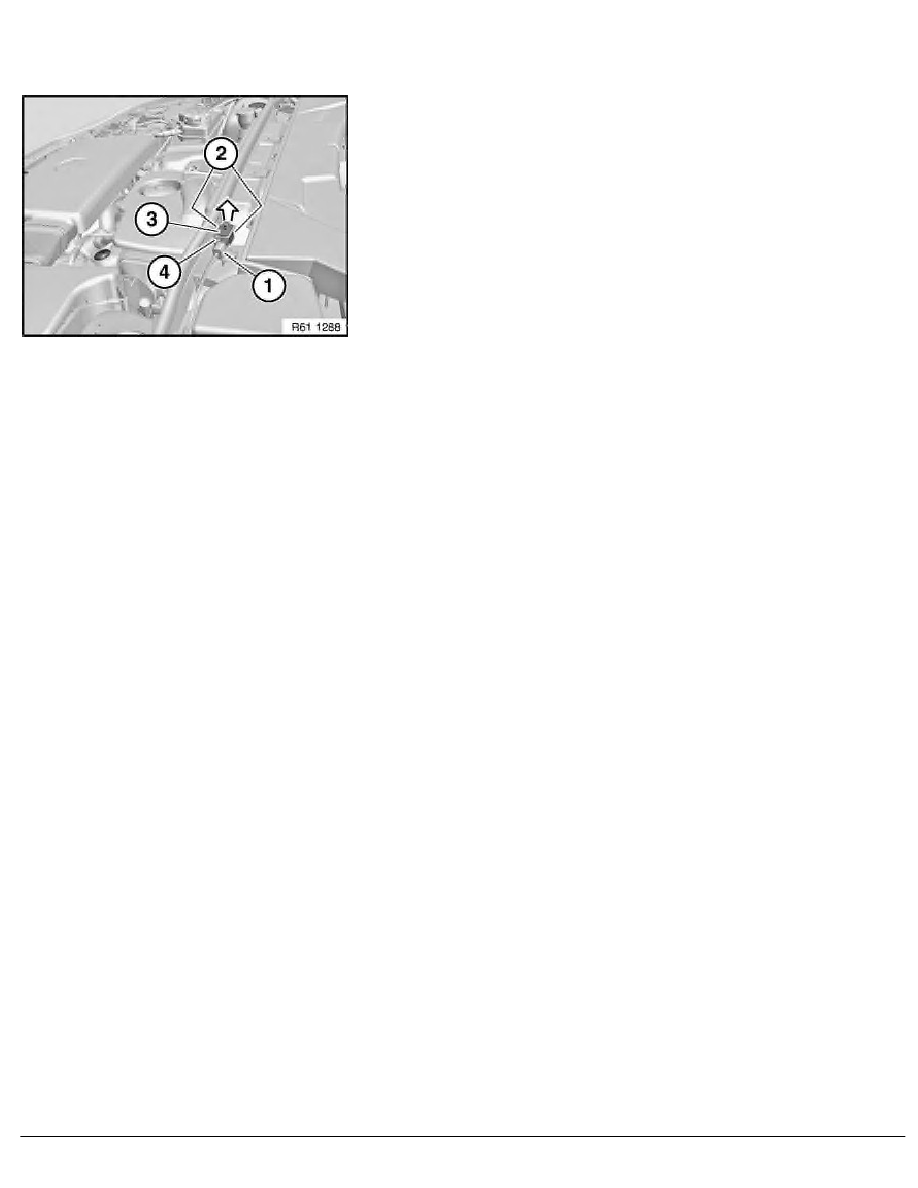

Unfasten plug connection (1) and disconnect.
Press catches (2) together and feed hood contact switch (3) in
direction of arrow out of fixture (4).
RA Removing and installing/replacing engine hood contact switch
