3 Series E90 335i (N54) SAL
61 35 954

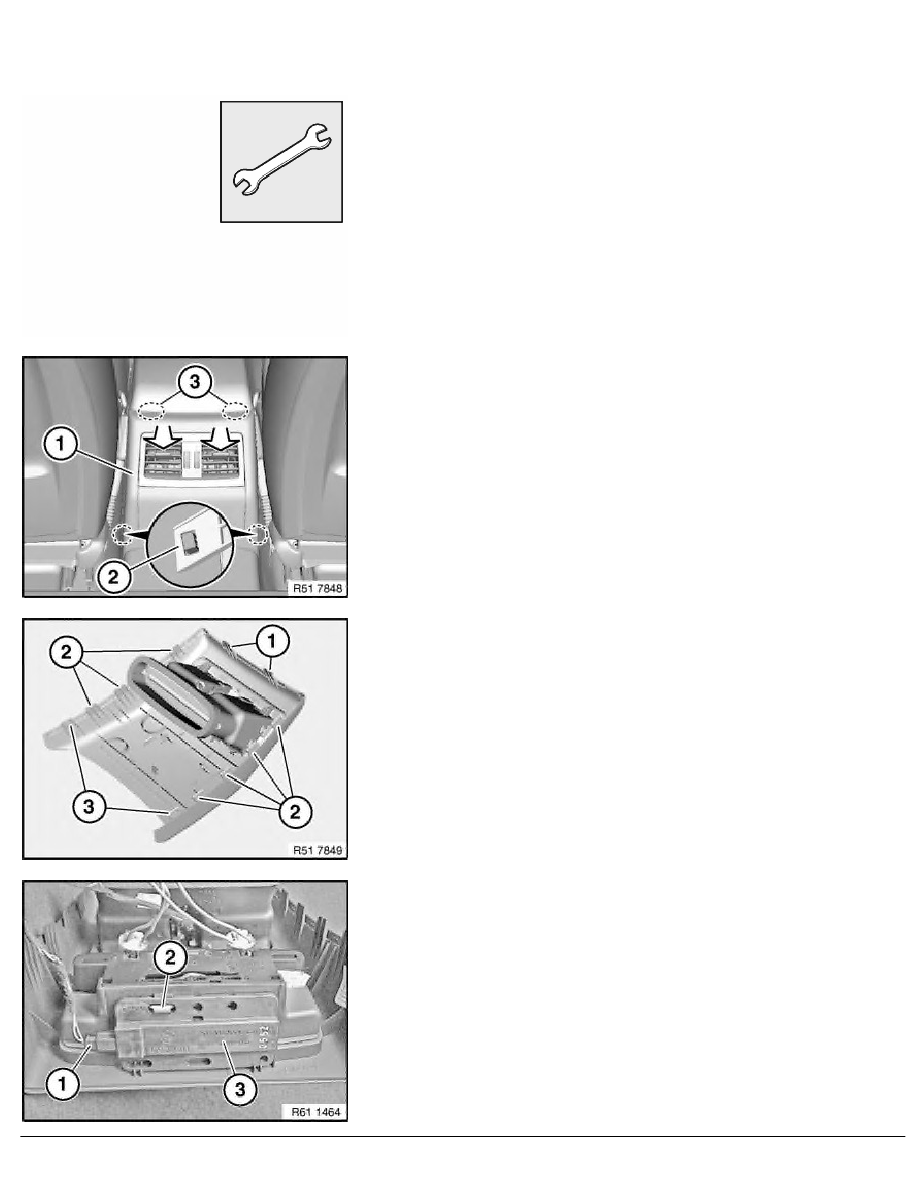

Removing and installing/replacing interior
antenna for comfort access system (rear)
Special tools required:
•
00 9 323
Important!
Carefully unclip catches (2) on trim (1) (risk of damage).
Move with special tool 00 9 323 from below behind trim (1)
and release catches (2).
Release trim (1) towards rear from catches (3).
If necessary, disconnect plug connections and remove trim (1).
Installation:
Catches (1 and 3) must not be damaged.
Guides (2) must not be damaged
Disconnect plug connection (1).
Unlock retaining hook (2) and remove luggage compartment
antenna for comfort access system (3).
