3 Series E91 320i (N43) TOUR
21 21 500
Removing and installing/replacing clutch
(SAC 228 N45/N46/N45T/N43/N46T)
Special tools required:
•
11 9 260
•
21 2 170
•
21 2 190
•
21 2 250
Necessary preliminary tasks:
•
Remove transmission

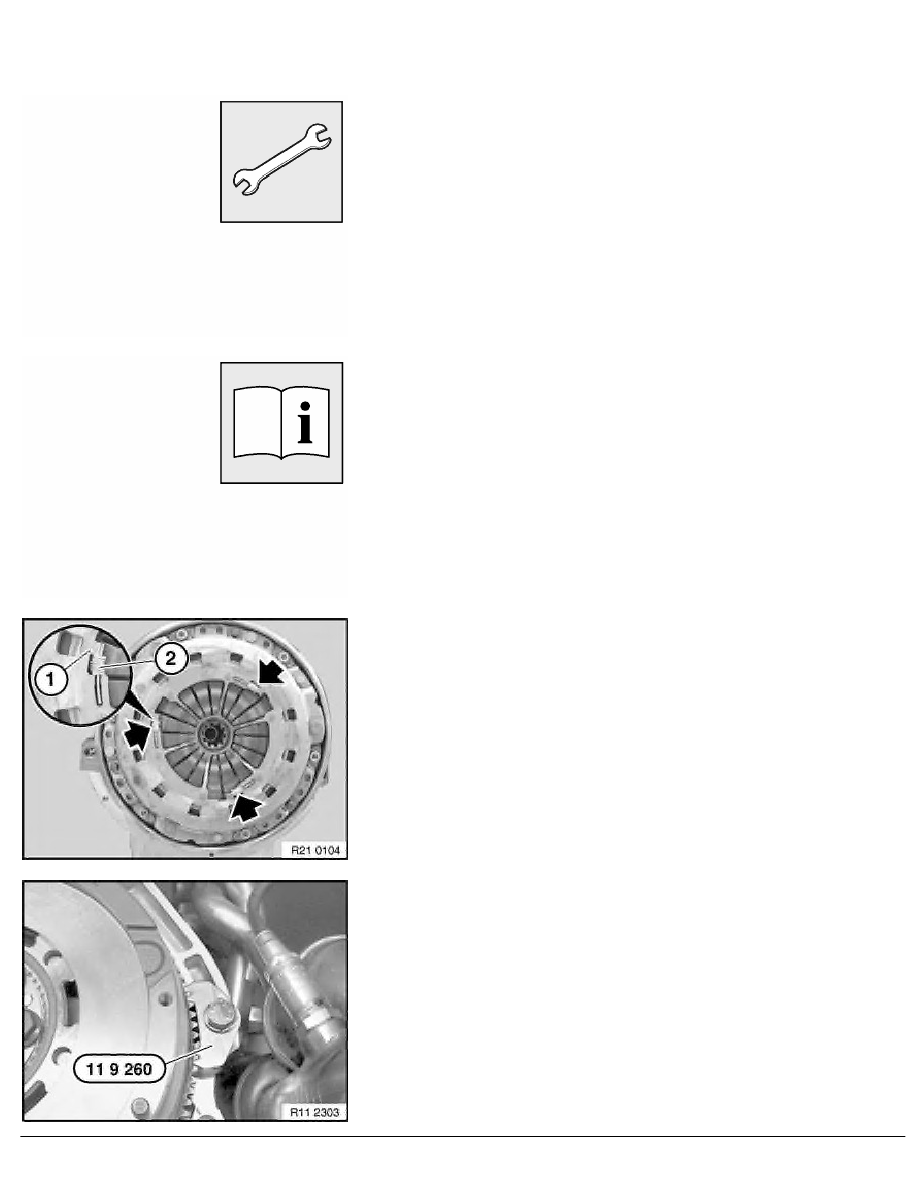

Identification SAC clutch dia. 228 mm (Self Adjusting Clutch):
-
3 openings each with a pressure piece (1) of adjustment ring
and a pressure spring (2)
Note:
Illustration shows new position of pressure pieces.
Block flywheel with special tool 11 9 260 .
RA Removing and installing/replacing clutch (SAC 228 N45/N46/N45T/N43/N46T)
