3 Series E92 320i (N46T) COUPE

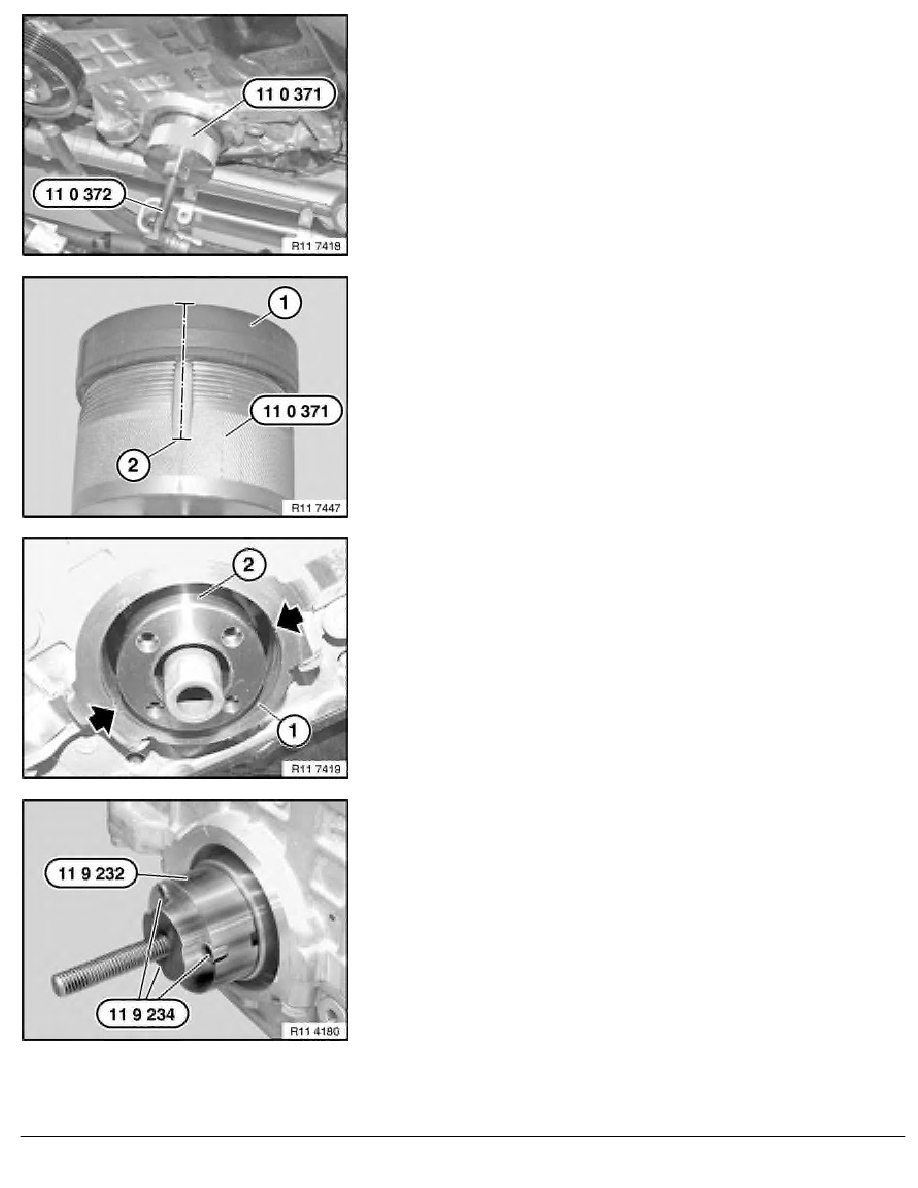

Screw special tool 11 0 371 to 80 Nm into crankshaft seal.
Screw out crankshaft seal with spindle 11 0 372 .
The procedure must be repeated several times if the crankshaft
seal cannot be removed.
Cut through crankshaft seal (1) at groove (2) on special tool
11 0 371 with an iron saw.
Remove crankshaft seal (1).
Installation:
Clean sealing surface (1) and degrease thoroughly in area of
housing partition.
Apply a light coat of oil to running surface (2) of crankshaft seal.
3-hole:
Screw special tool 11 9 232 with screws (special tool
11 9 234 ) to crankshaft.
RA Replacing front crankshaft seal (N46T)
