5 RA Replacing Rear Left Outer Wheel Arch Section (rear Left Side Panel Removed)|Page 1473 > < 5 RA Replacing Rear Left Outer Wheel Arch Section (rear Left Side Panel Removed)

3 Series E92 328i (N51) COUPE

Page 2
background image

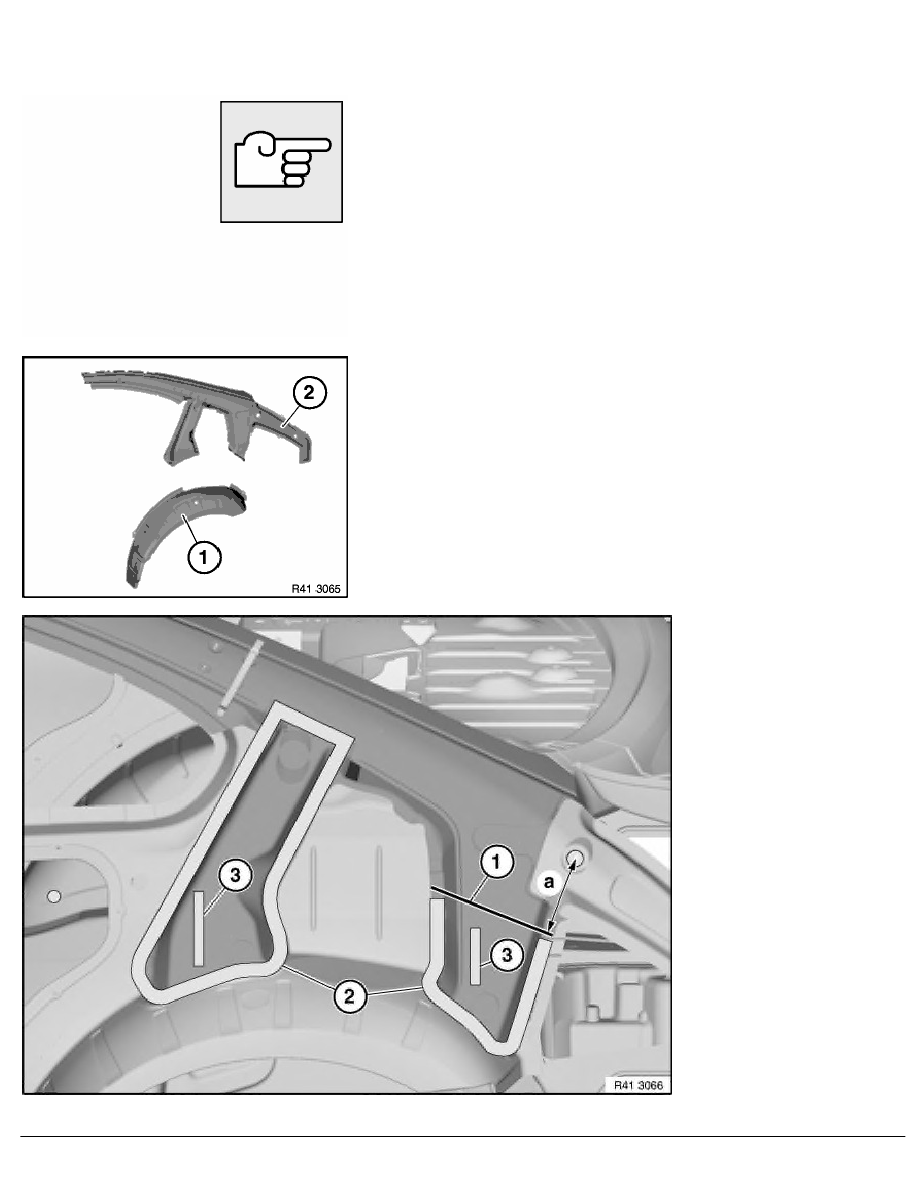

Important!

Cut outer metal sheet only.

Dimension a = approx. 110 mm from 25 mm dia. bore.

Open weld joints in areas (2).

Installation:

Weld in reinforcement plate at severance cut.

Bond new cavity acoustic baffles (3) with window adhesive.

Open weld joints in area (1).

Open weld joints in area (1).

RA  Replacing rear left outer wheel arch section (rear left side panel removed)

BMW AG - TIS

23.02.2013  17:36

Issue status (12/2007) Valid only until next DVD is issued

Copyright

Page  - 2 -
