3 Series E92 M3 (S65) COUPE
11 53 000

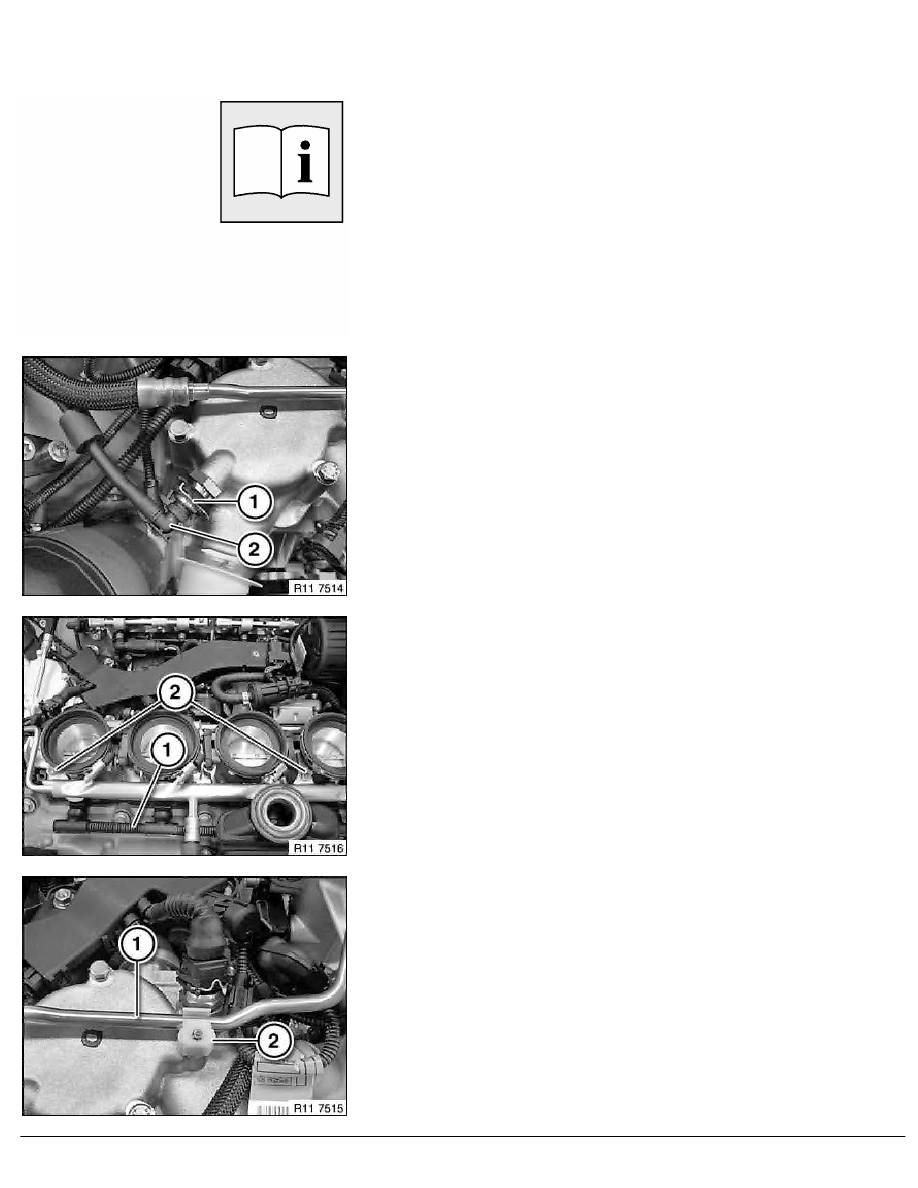

Removing and installing/replacing coolant
thermostat (S65)
Necessary preliminary tasks:
•
Remove intake air manifold.
•
Drain coolant.
Release unlocking element (1).
Detach vent line (2).
Disconnect fuel line from fuel rail.
Release screws (2).
Unlock wiring harness of fuel injectors (1).
Clip injection pipe (1) out of holder (2).
Lay injection pipe, cylinders 5 to 8, to one side.
RA Removing and installing/replacing coolant thermostat (S65)
