3 Series E93 330i (N53) CONVER

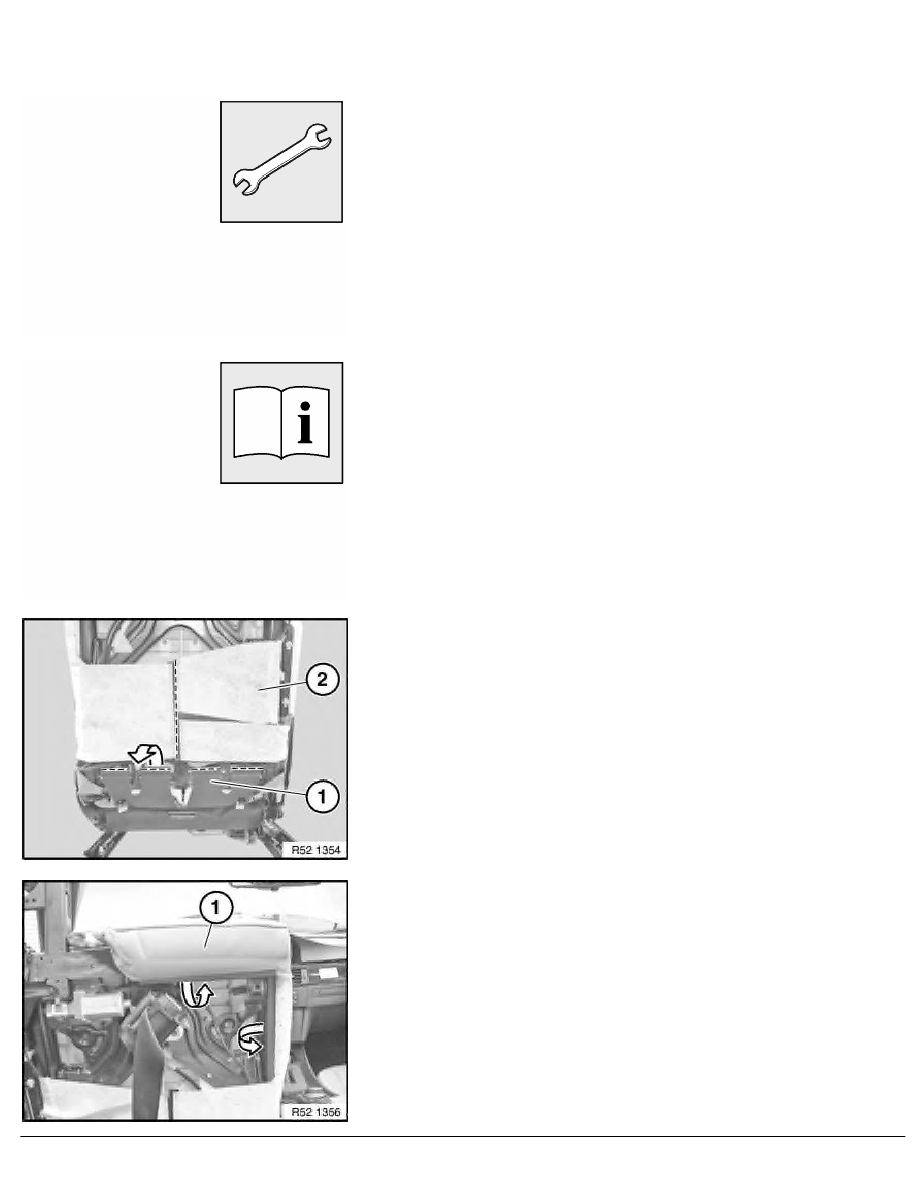

Detach backrest cover from metal retainer.
Lever out welt in marked area.
Release the corresponding plug connections depending on the
version and disconnect.
Detach cable tie.
Pull off backrest cover (1) with padding sideways and towards
top from backrest frame.
Important!
Feed the wiring harness carefully through the seat and
backrest mechanism as the edges of the frame can be sharp.
Release retainers on left/right.
Release all retainers in marked area.
Remove backrest cover from padding.
Note:
Remove all remnants of retainers from backrest cover and
padding.
RA Replacing backrest cover for left or right front seat
