5 Series E39 520d (M47) SAL
35 00 ...

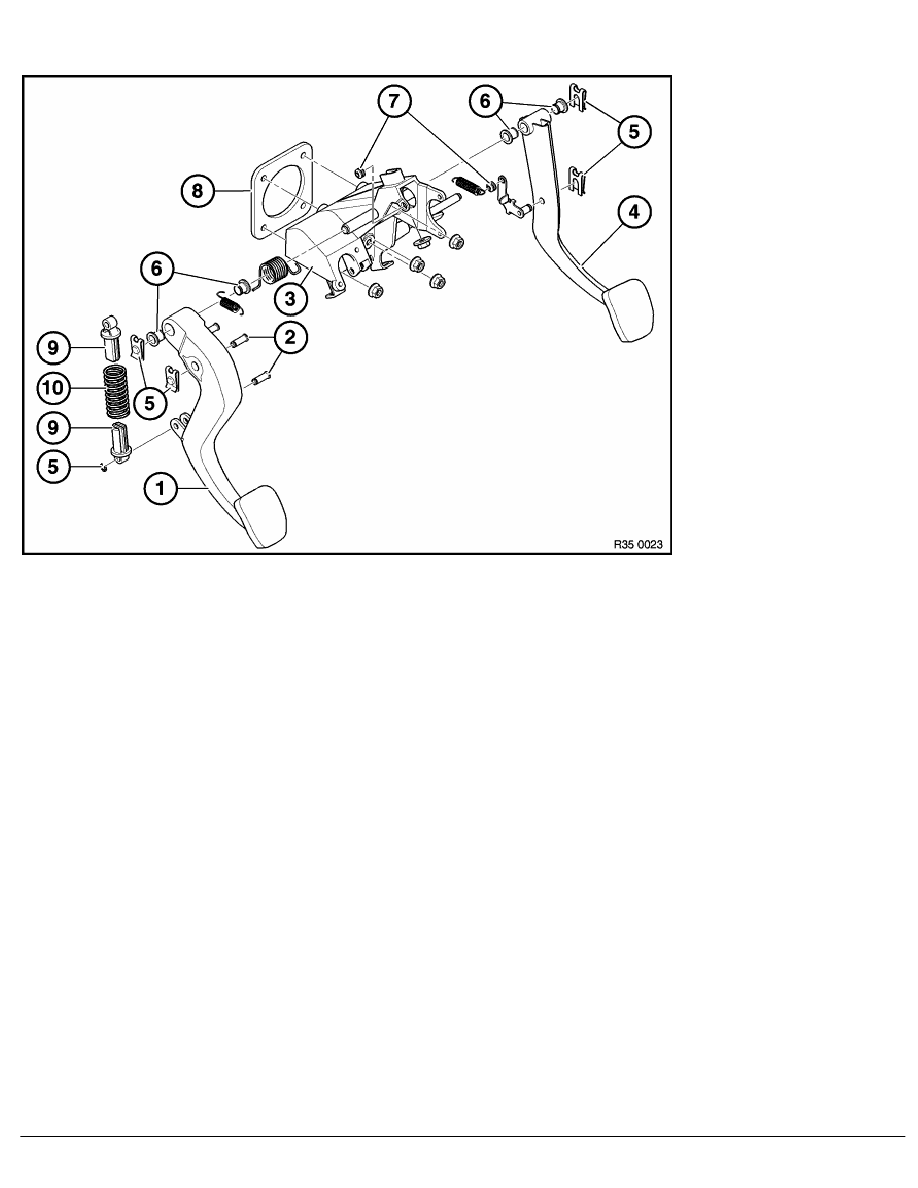

Layout of brake and clutch pedals
1
Clutch pedal
2
Shaft
3
Mounting block
4
Brake pedal
5
Retainer
6
Bearing sleeve
7
Grommet
8
Seal
9
Bracket
10
Spring
RA Layout of brake and clutch pedals
