5 Series E39 520d (M47) SAL

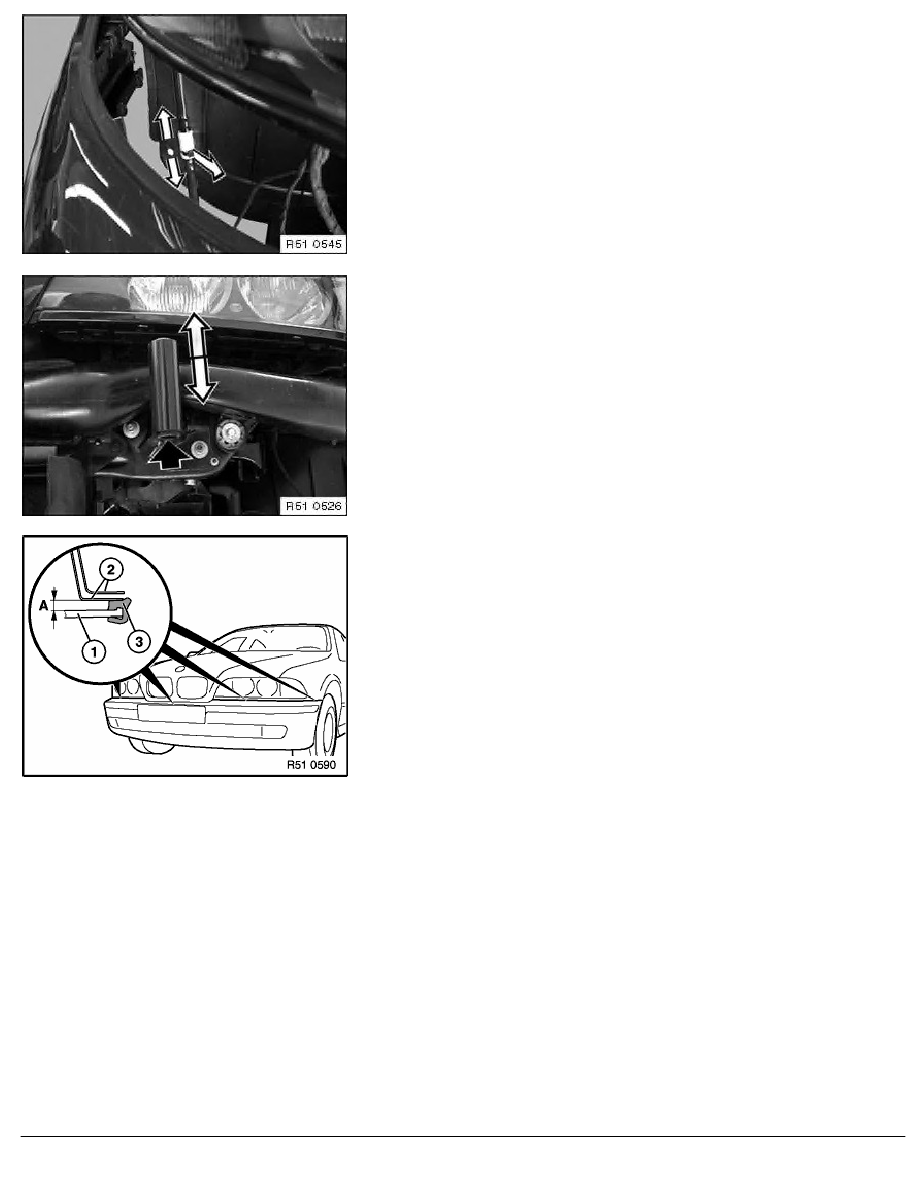

Version with headlight cleaning system:
Pull bumper back a little:
Detach lock and disconnect hose connection.
Remove bumper.
Installation:
The height of the bumper is adjusted by turning the socket head
cap screw.
Ideal adjustment:
Distance (A) must be the same all around between the bumper
and body cutout.
Dimension (A) = 5
±
1 mm
RA Removing and installing complete front bumper
